MKC75 MECHANICAL KEYBOARD KIT - WIRED PCB

MKC75 MECHANICAL KEYBOARD KIT - WIRED PCB

With the three-in-one structural design, which supports plate gaskets, PCB gaskets, and Top Mount structure, it provides multiple options to customize your keyboard. Thanks to the consistent frame of the compact 75% layout, it makes the three mounting systems perfectly compatible.

*The kit does not come with switches and keycaps.

Case Color
Regular price $170.00
/
  • Compact 75% layout
  • Supports Alu Internal Weight
  • Multiple configurations available
  • Supports Caps Lock Indicator Light
  • 100% processed using CNC machining with 6063 aluminum case
  • Supports Plate, Half Plate and Plateless Build

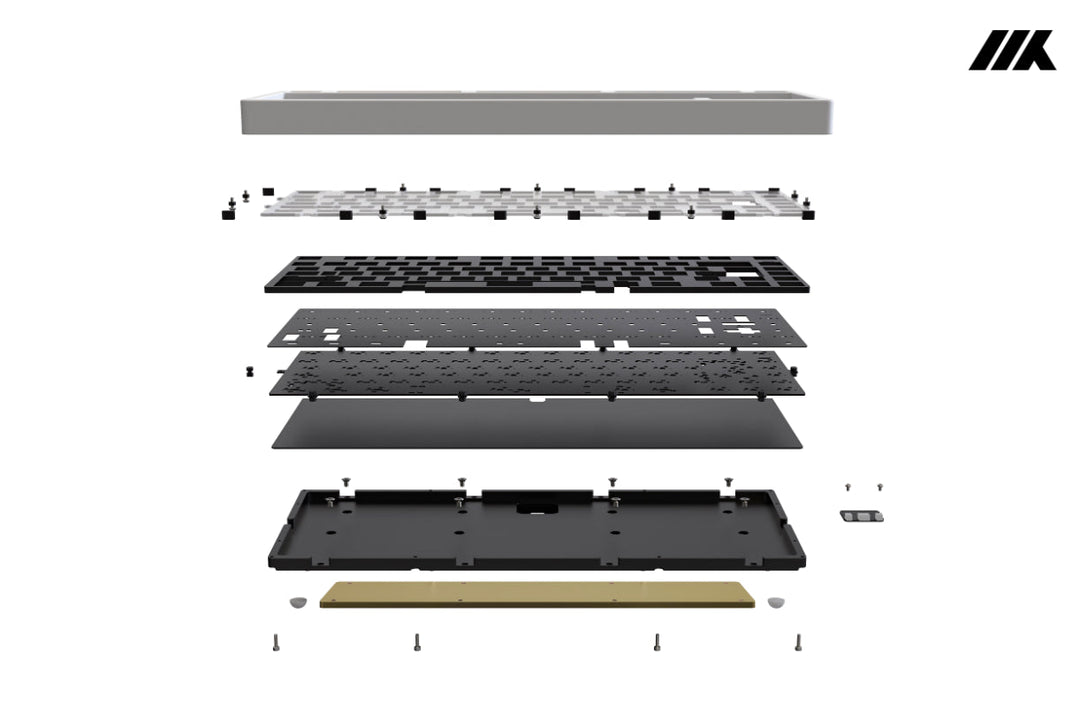

  • Three-in-one structural design (Top Mount, Plate Gasket Mount and PCB Gasket Mount )

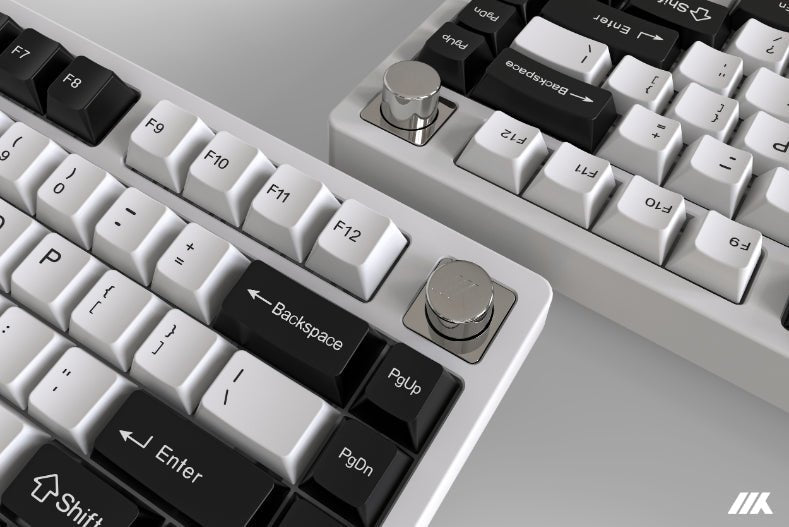

  • Supports Rotary Knobs and LED Light Signs, which are also compatible with JRIS75 Rotary Knob/ Badge /LED Light Sign
  • Typing angle: 7°
  • Front height: 18.5 mm
  • Material: Full CNC 6063 aluminum
  • Dimension: 320*134.4*33mm
  • Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
  • QMK/VIA Supported(wired)
  • Support PCB stabilizers

Unbuilt Weight

  • With PVD WEIGHT: 1.693kg
  • With Alu WEIGHT: 1.425kg

Built Weight

  • With PVD WEIGHT: 1.86kg
  • With Alu WEIGHT: 1.592kg

PCB Options:

  • Wired Flex Cut Hotswap PCB (1.2mm, ISO & ANSI support, 7u split spacebar, No Per-key RGB, support QMK and VIA)
  • Solder PCB / Wired Non-Flex Cut Hotswap PCB (1.6mm, ISO & ANSI, 7u split spacebar, No Per-key RGB, support QMK and VIA)
  • ADD-ON ONLY PCB: Wired Per-Key RGB Hotswap PCB (1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA)

Plate Options:

  • Flex Cut Plates: FR4, ALU, Brass (Add-on only)
  • Non-flex Cut Plates: PC, POM
  • Alu and FR4 Half-plate (Add-on only)
  • Plateless

WHAT'S INCLUDED:

  • Full CNC Aluminum Top case *1
  • Full CNC Aluminum Bottom case*1
  • Weight (Anodized Alu Weight or Stainless steel PVD Weight) *1
  • Plateless or Plate *1
  • PCB *1
  • IXPE Foam *1
  • Poron Case Foam *1
  • Poron Plate Foam *1
  • Type-C Daughterboard with JST Cable *1
  • PCB GAS Silicone Column *12
  • Plate GAS Silicone Sock *18
  • Top mount screw and spacer *12
  • PCB stabilizers o-ring *12
  • Footpad *6
  • Poron case strip *6
  • 1.6mm hex key *1

MYKEYCLUB GIFT (will not send make-up or replacements)

  • 1 Pack of Extra Screw
  • M2x3mm cylindrical head screw *2
  • M2x8mm cylindrical head screw *2
  • M3x12mm countersunk screw *2
  • M3x6mm countersunk screw *2
