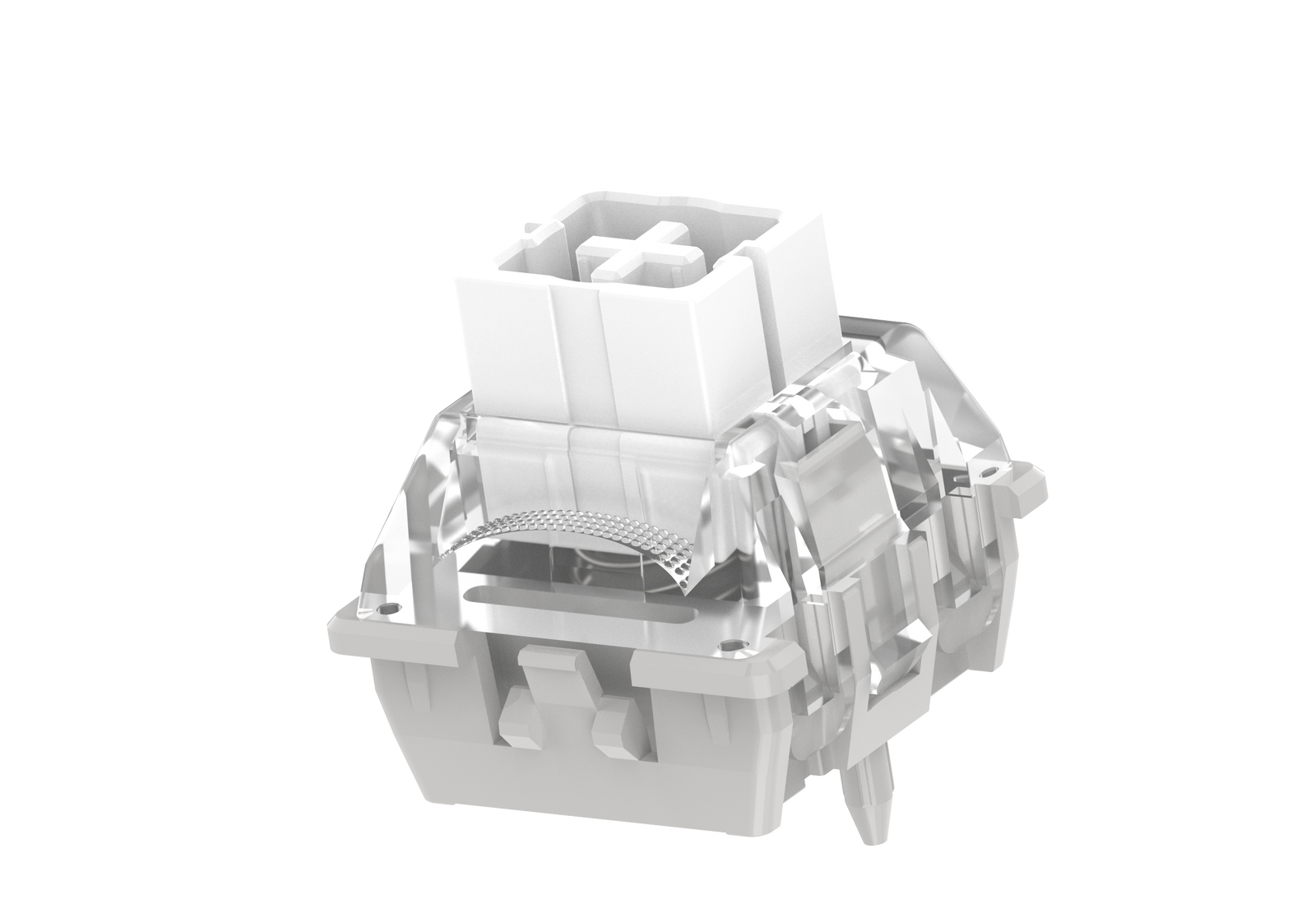

TTC Lite KOM HE Switch

TTC LITE KOM HE SWITCHES

Lite KOM HE is the value tier of TTC's King of Magnetic line, carrying the same reputation for stable stems and strong spring engineering that put the Pro KOM HE on the map as a real alternative to Gateron's premium magnetic switches. Force and travel are nearly identical between the two tiers — the difference sits in the magnetic flux tolerance, which is wider here than on the Pro version, meaning marginally more unit-to-unit variance in practice.

Sound character carries over from the same family: thockier and deeper than the hollow ping typical of budget Hall Effect switches. Like the rest of the KOM line, actuation point and Rapid Trigger sensitivity are software-adjustable per key on compatible boards.

Price
Regular price $700
Regular price Sale price $700
/

Pairs well with

Specifications
  • Type: Linear, Magnetic (Hall Effect)
  • Initial force: 35±10gf
  • Total travel: 3.4±0.2mm
  • Initial magnetic flux: 100±20Gs (1.2mm PCB) / 90±20Gs (1.6mm PCB)
  • Final magnetic flux: 640±70Gs (1.2mm PCB) / 480±70Gs (1.6mm PCB)
  • Pre-travel: Customized (software-adjustable)
  • Housing: White stem + grey bottom housing + clear upper housing
  • Lifespan: 100 million keystrokes
  • Vendor: TTC
  • Compatibility: Requires a Hall Effect-compatible PCB - not compatible with standard 3-pin/5-pin mechanical hot-swap sockets
