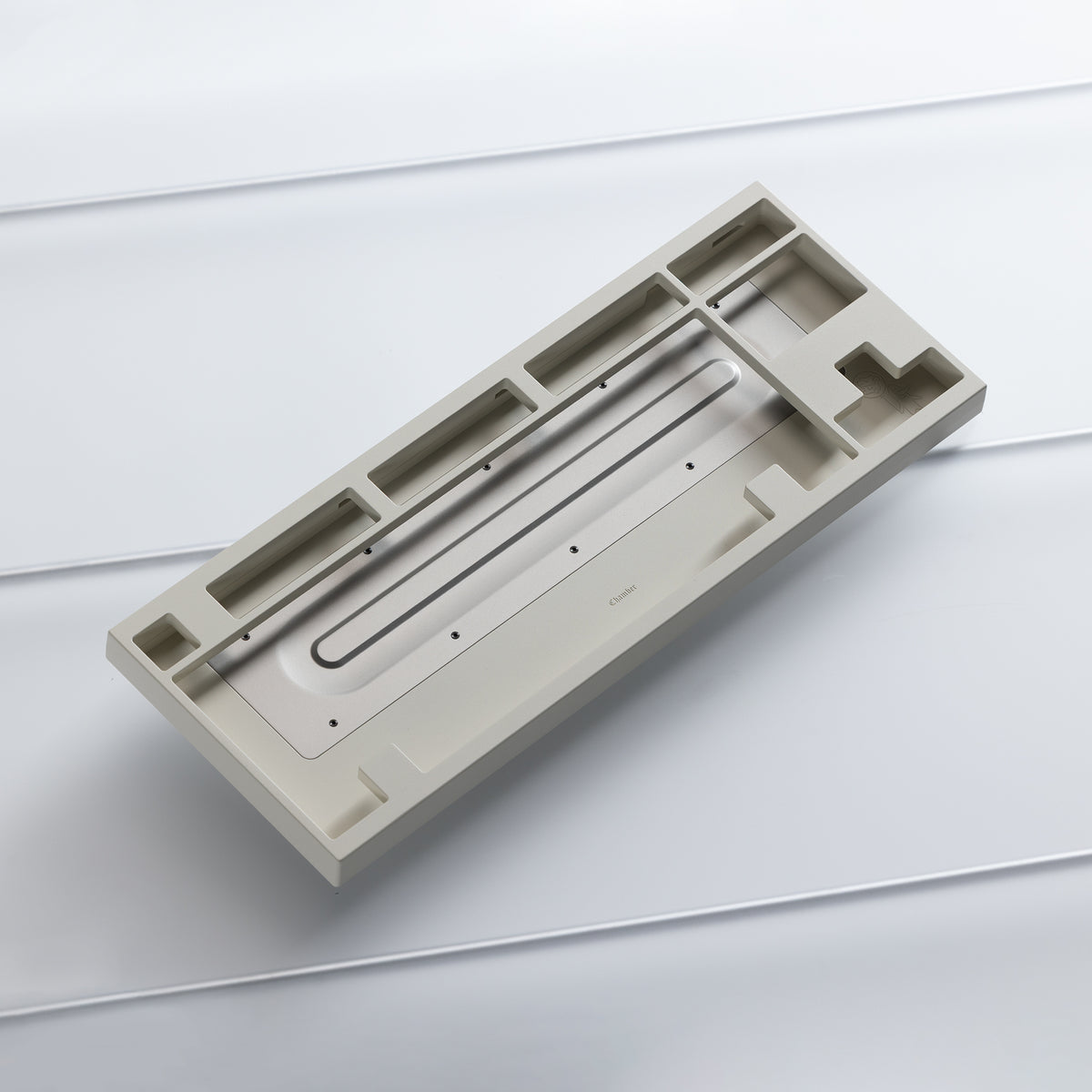

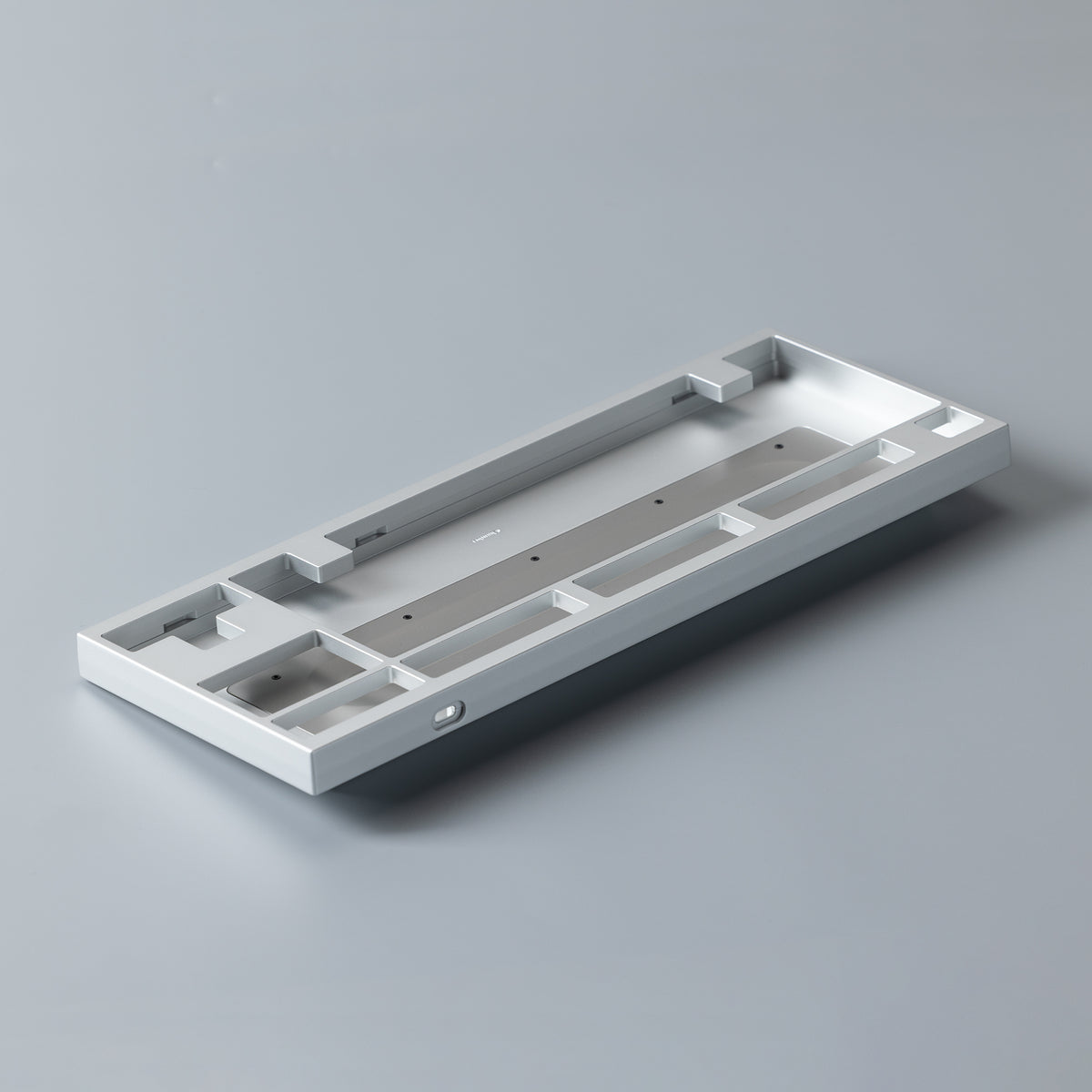

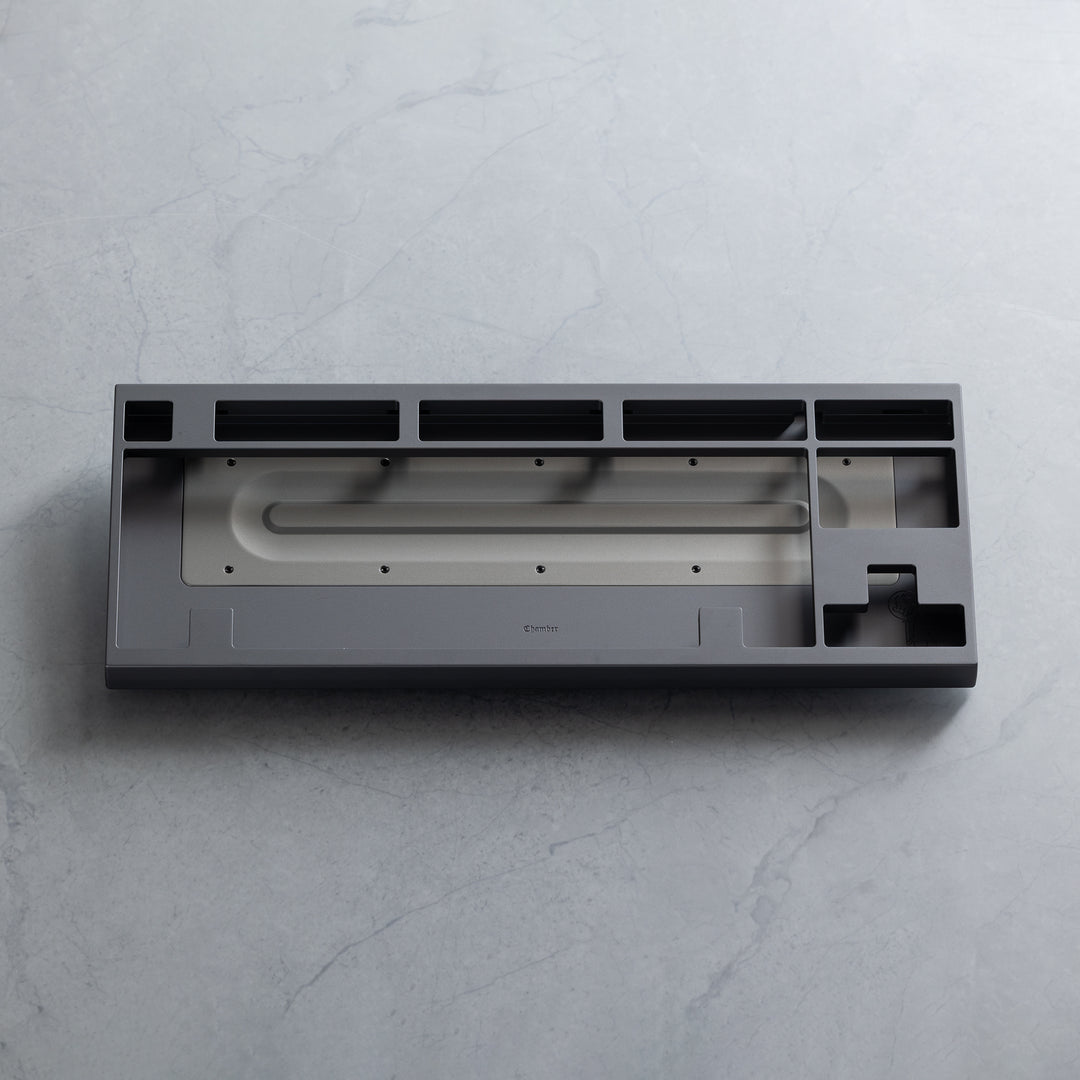

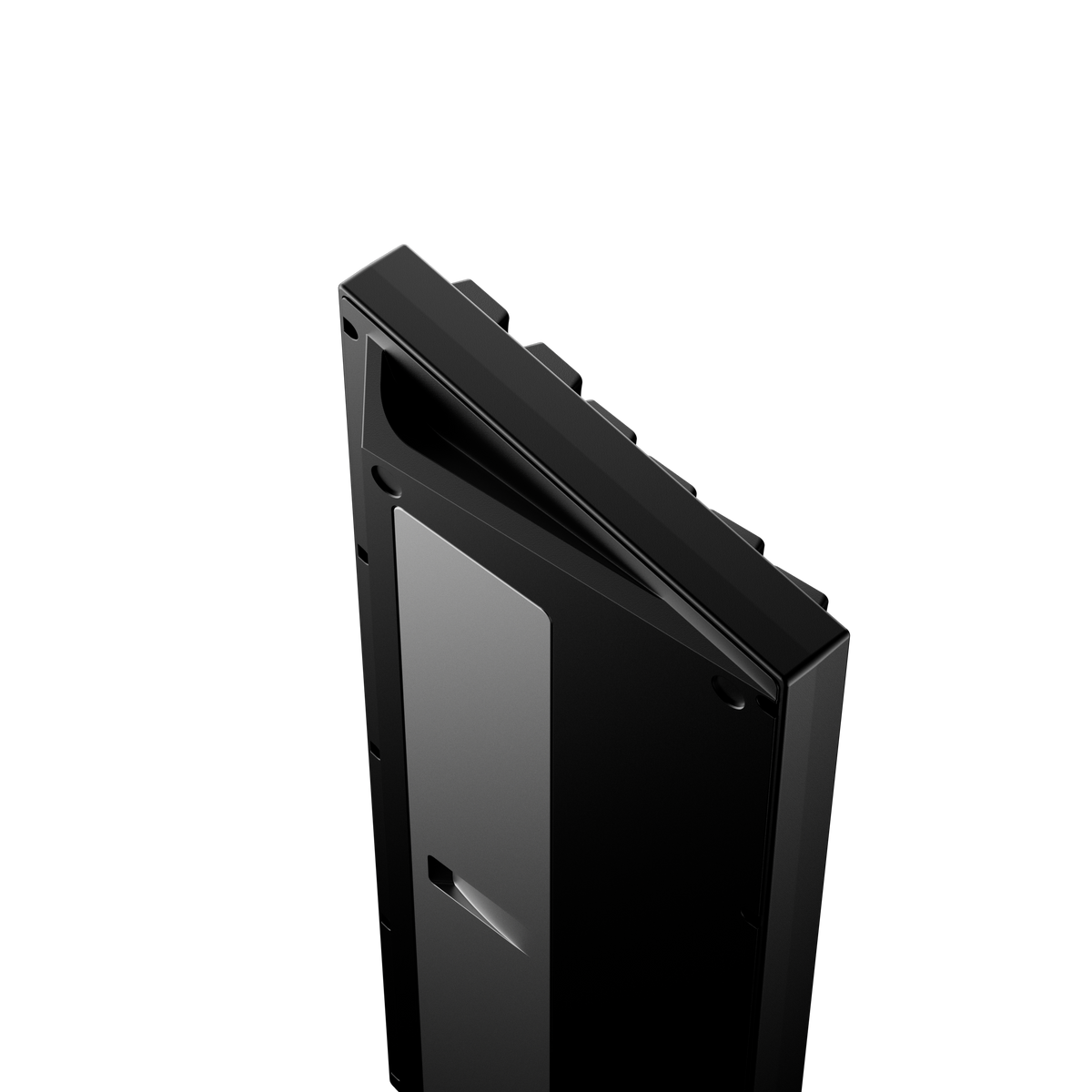

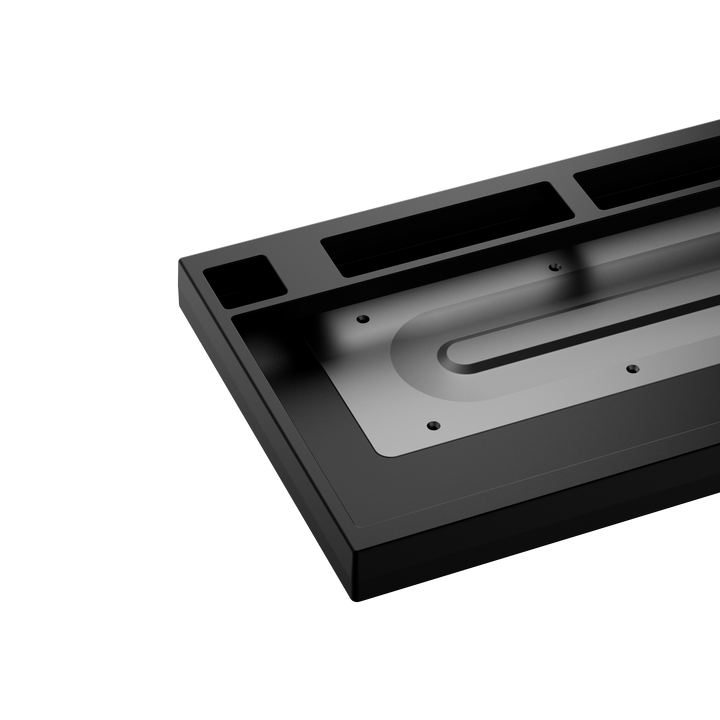

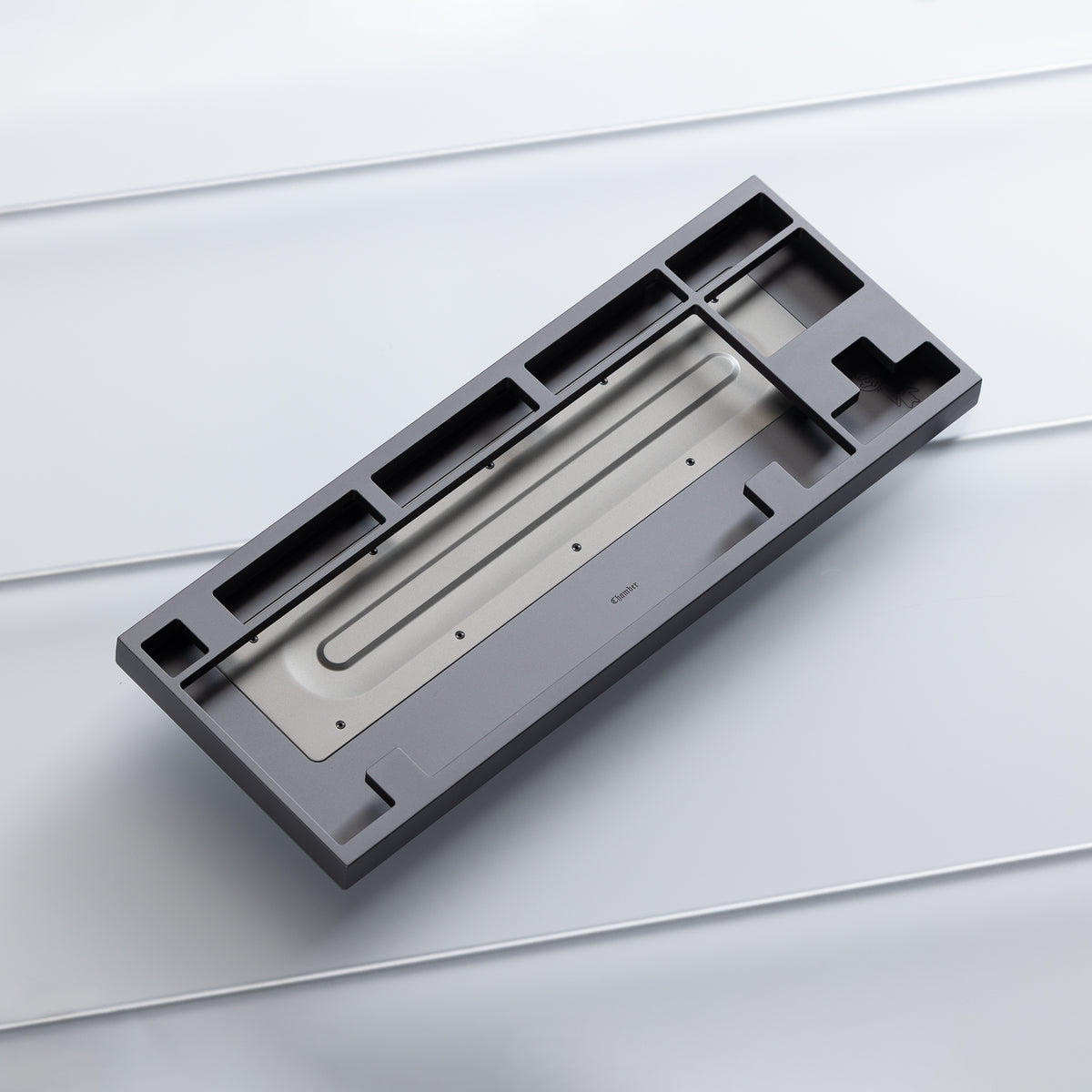

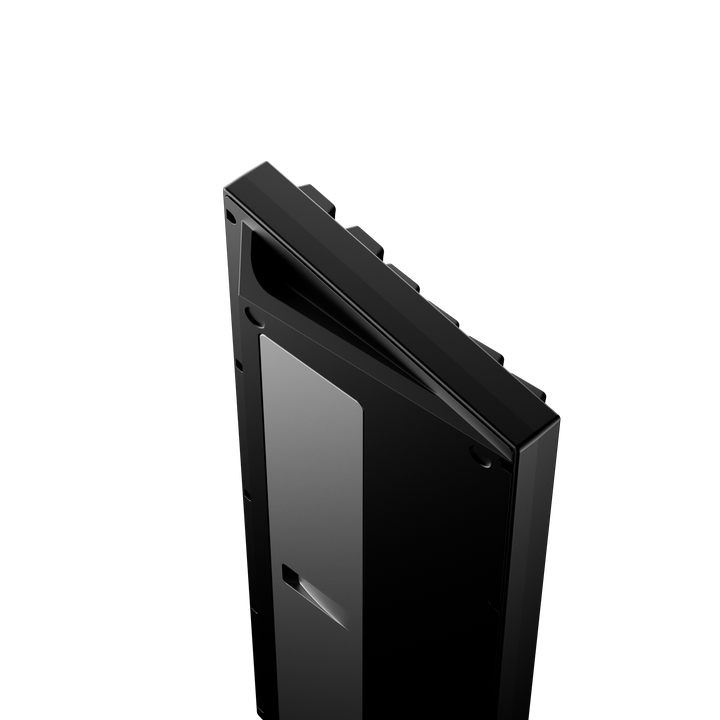

Designed by Masro for KBDfans, the Chamber TKL is built around one idea: instead of smothering a keyboard's sound under layers of foam, give it room to resonate. Case volume, geometry, the through-case weight and the top-mount structure were tuned together so your switches, plate and case each keep their own character. It's a board for builders who want to actually hear the difference their choices make — finished with a signature side profile milled from underneath, a detail carried over from the very first prototype.
Price
Regular price $26700
Regular price Sale price $26700
/
Shipping calculated at checkout.

Pairs well with

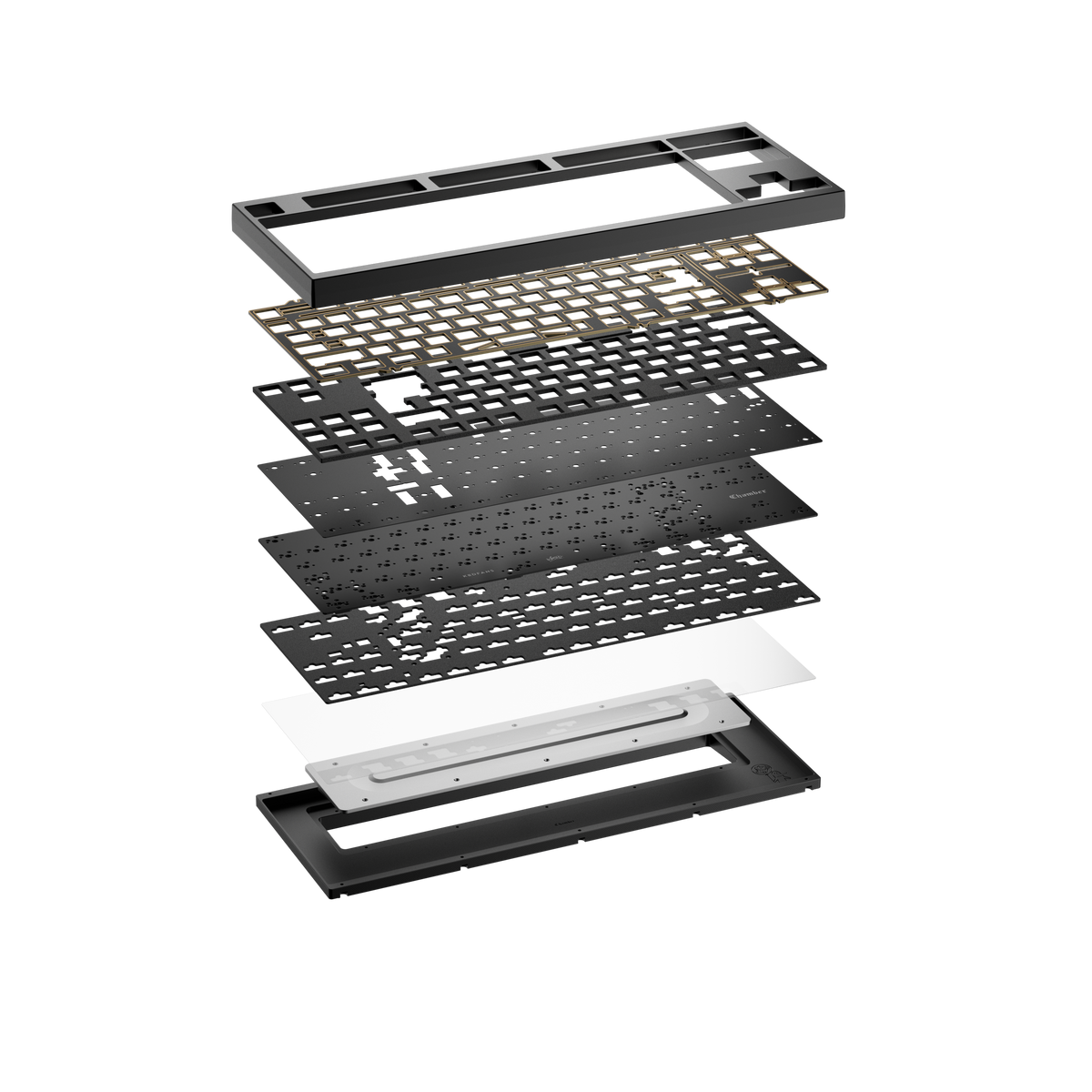

What's in the box?
  • Top case x1
  • Bottom case x1
  • Internal weight x1 (aluminium, stainless steel or copper)
  • PCB x1 (solder or hot-swap)
  • Plate x1 (aluminium, FR4, polycarbonate or carbon fibre)
  • PTFE force-break pads x1 set
  • Silicone feet x1 set
  • Cleaning cloth x1
  • Carrying case x1

Please note: Chamber TKL is a barebone kit. Switches, keycaps and stabilizers are not included.
Specifications
  • Layout: TKL (80%), WK or WKL

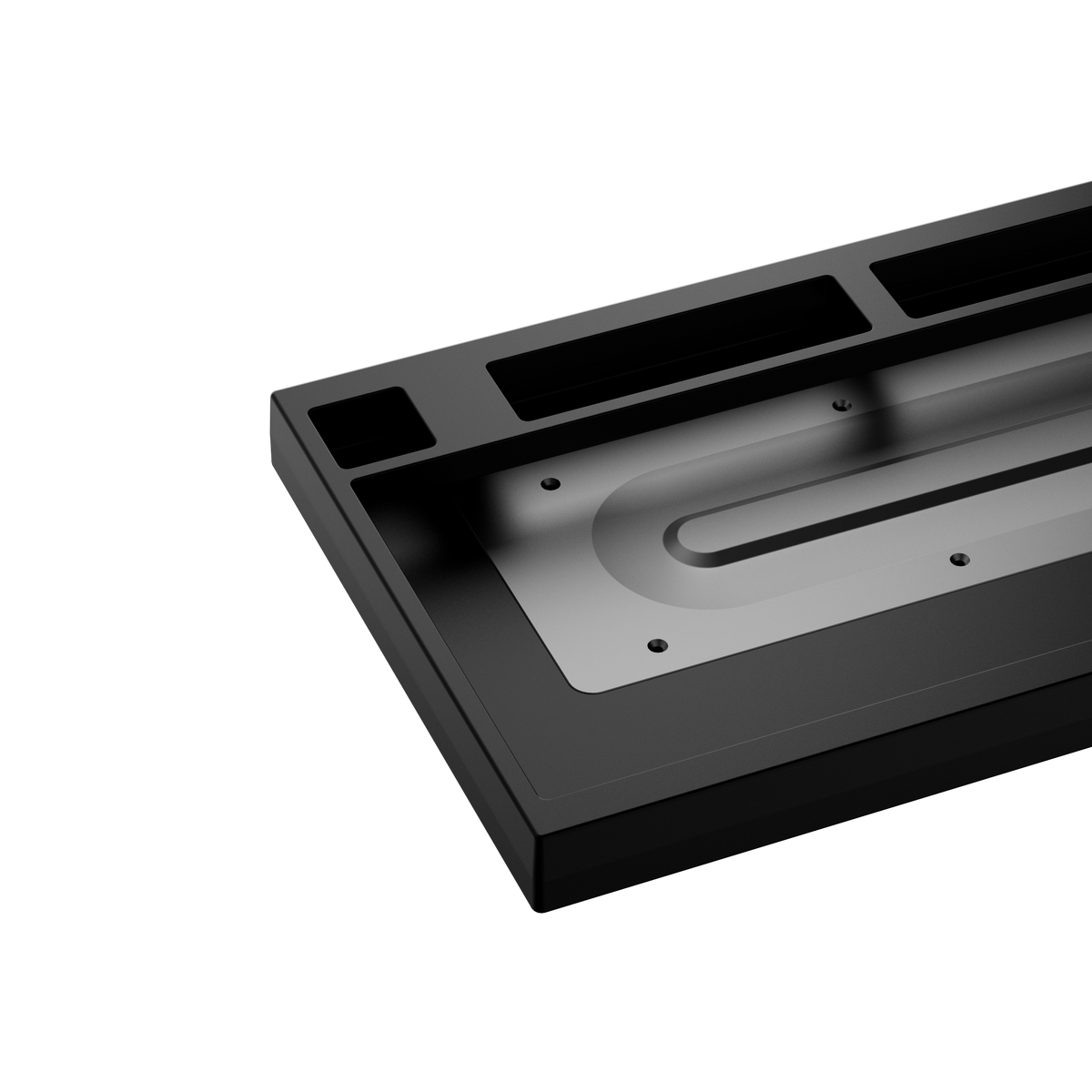

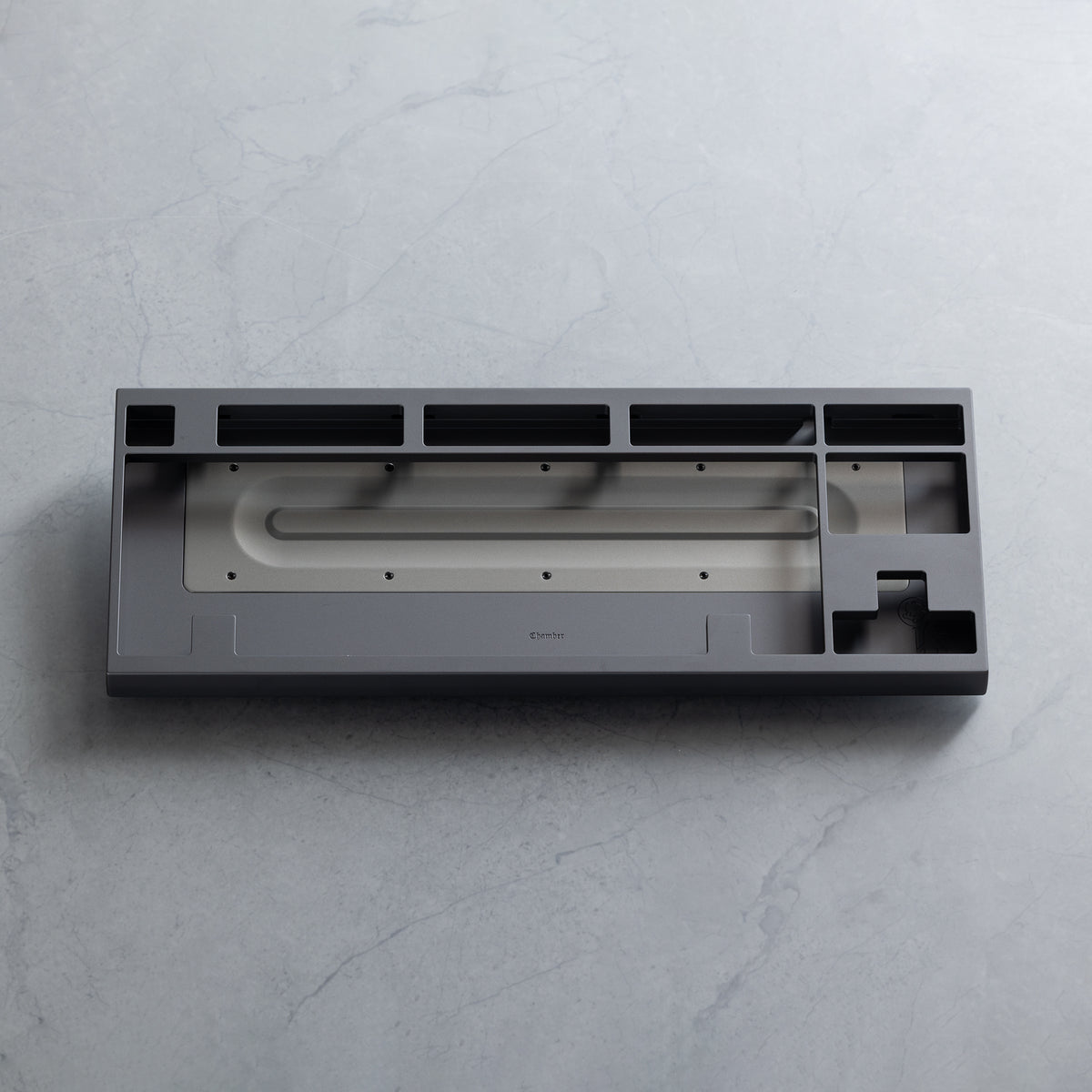

  • Case material: aluminium top and bottom case (anodised)
  • Mounting: top mount with 0.17 mm PTFE force-break pads between the case halves

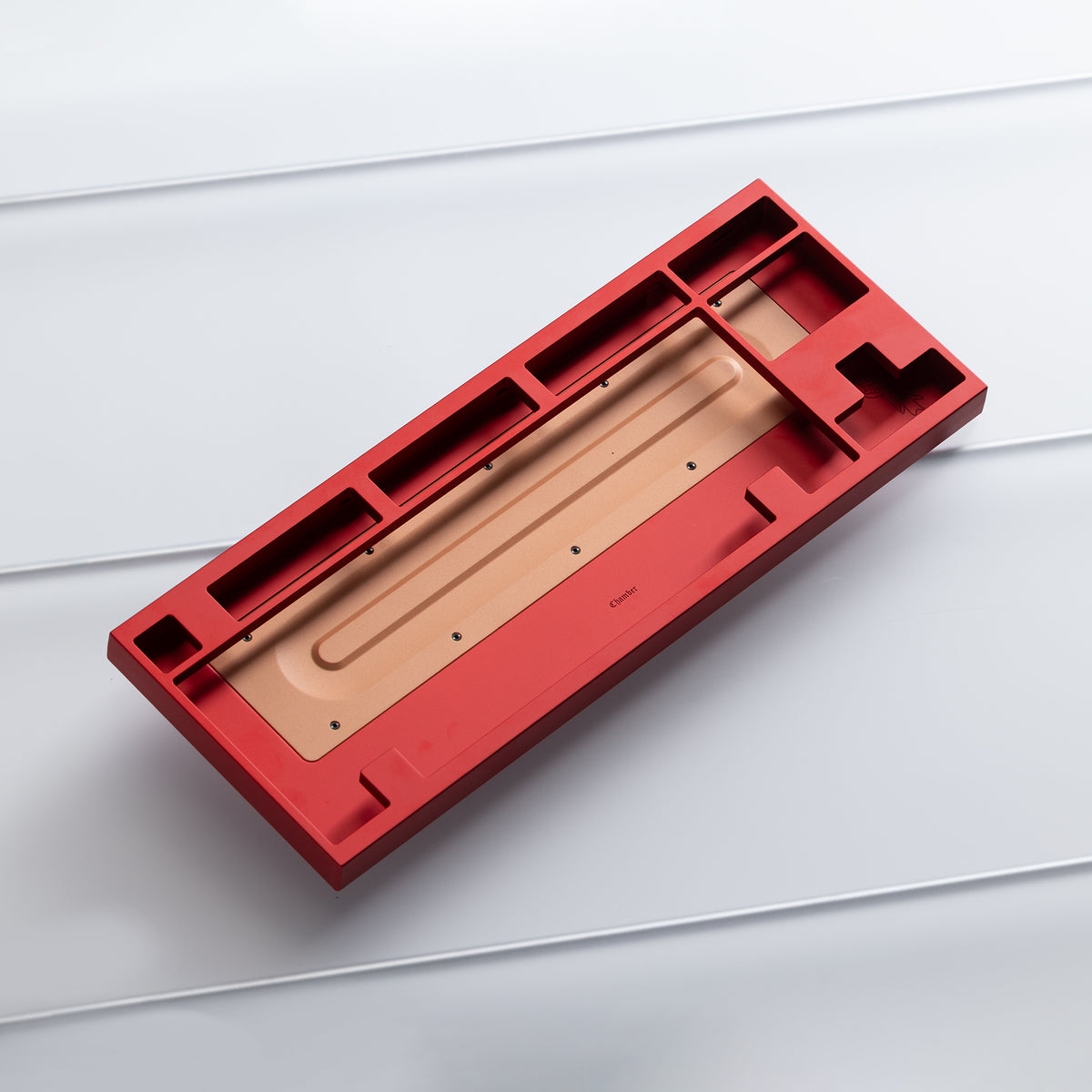

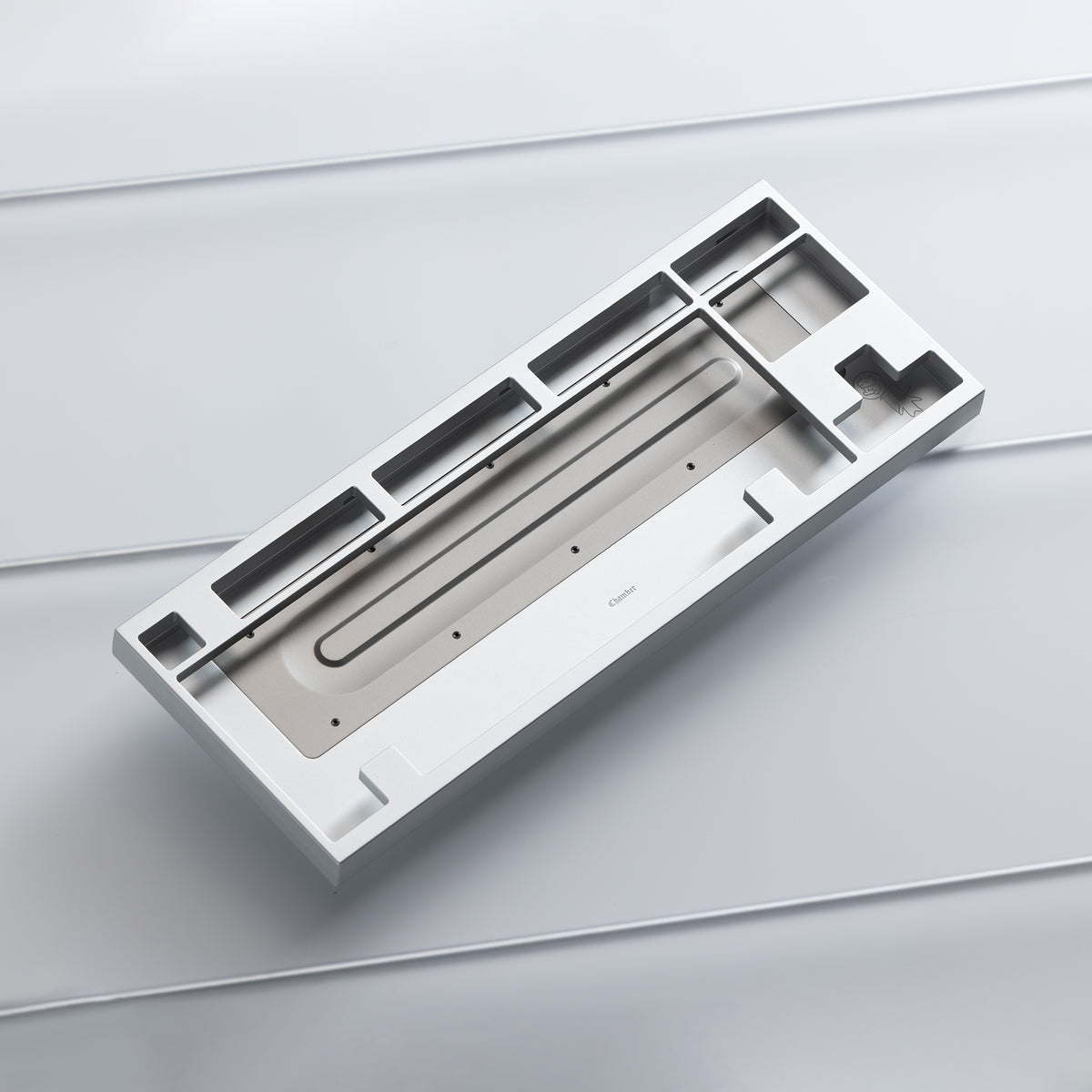

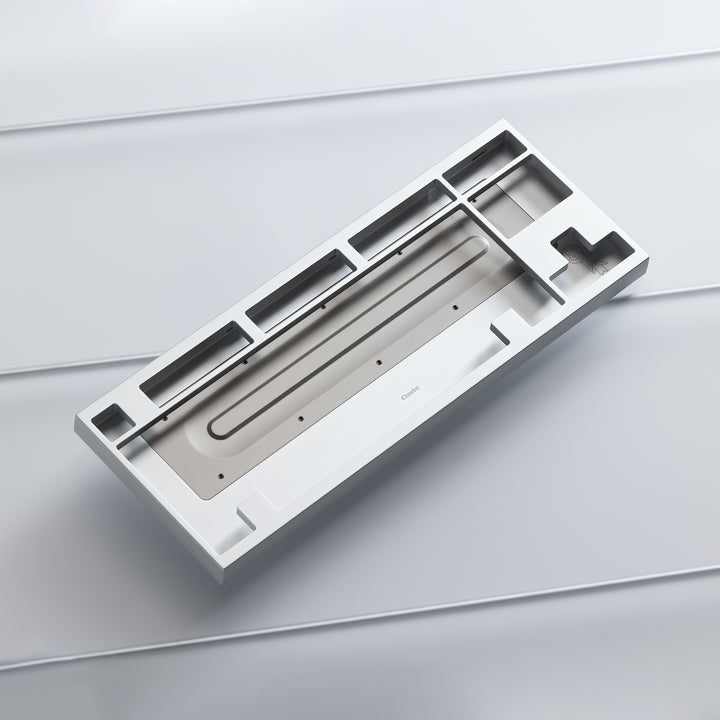

  • Internal weight: through-case weight visible on the underside – stainless steel (1246 g, sandblasted, anti-fingerprint), copper (1393 g, sandblasted, anti-fingerprint) or aluminium (415 g, silver anodised)
  • PCB: wired, FR4 – solder (ANSI + ISO on one PCB, most layout options), hot-swap ANSI or hot-swap ISO
  • Firmware: Vial, VIA compatible
  • Plate: aluminium (black), FR4, polycarbonate or carbon fibre
  • Foam kit: optional, matched to solder or hot-swap PCB – the case is tuned to sound good without heavy foam
  • Typing angle: 7°
  • Dimensions: 358.95 × 139.53 mm; height 19.22 mm front, 35.80 mm rear
  • Feet: silicone
  • Designer: Masro

Group buy / pre-order item
Preorder open from Oct 27th to Nov 27th 2026
Estimated delivery: Q1 2027
