KEYCHRON K3 MECHANICAL KEYBOARD

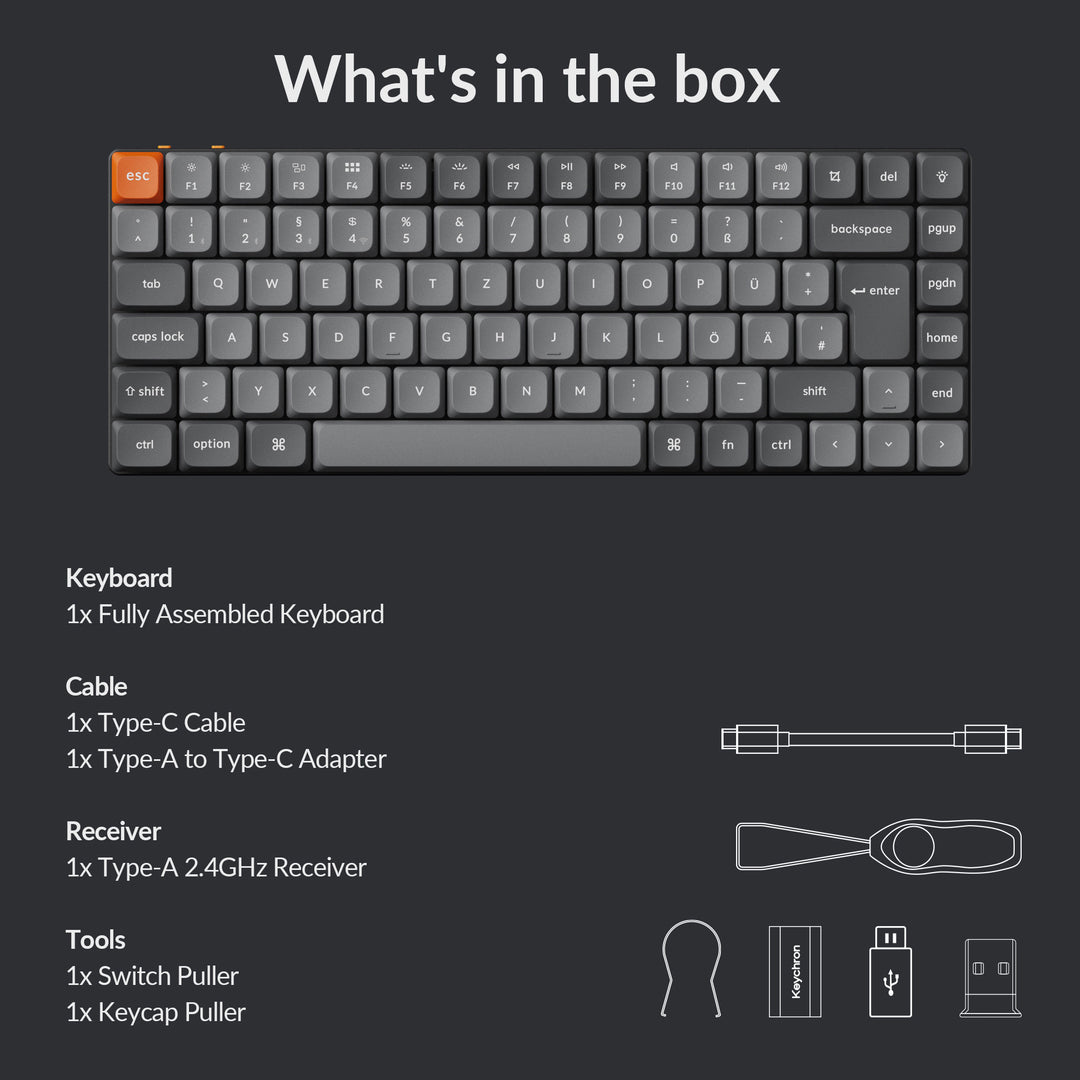

Keyboard

1x Fully Assembled keyboard

Cable

1x Type-A to Type-C Cable

Tools

1x Switch Puller

1x Keycap Puller

SPECIFICATION

• Number of Keys 84 (75%)
• Switches Keychron Red low-profile mechanical
• Switch Face North-facing
• Number of Multimedia Keys 12
• Frame Material ABS+Aluminum frame
• Keycap Material Shine-through ABS
• Layout ISO ES
• Polling Rate (Wired Mode) 1000Hz
• Polling Rate (BT Mode) 90Hz
• N-Key Rollover (NKRO)Yes for both wireless and wired modes

*The K3 Version 3 is currently compatible with Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

CONNECTIVITY AND POWER

• Backlit 22 types of RGB backlight options plus endless possibilities
• Battery 1550 mAh rechargeable li-polymer battery
• Wireless Working Time (Backlit off) Up to 124 hours (Lab test result may vary by actual use)
• Wireless Working Time (RGB)Up to 82 hours (Lowest brightness)
• Connection Bluetooth / Type-C wired
• Bluetooth version 5.2
• Bluetooth Device Name: Keychron K3 Version 3
• Compatible System: macOS / Windows / Linux

PHYSICAL UNIT

• Dimension 306 x 116 mm (12.04 x 4.56")
• Weight 540 g / 1.19 lb
• Height without keycap (front)9 mm (0.35")
• Height without keycap (rear)14 mm (0.55")
• Height incl. keycap (front)19 mm (0.75")
• Height incl. keycap (rear)23 mm (0.91")
• Typing Angle: 2.5º, 4.2º and 6.5º
• MCU ARM Cortex-M3 32-bit WB32F3G71RCT6 (256KB Flash)
• Operating Environment -10 to 50℃
