NEO ERGO MECHANICAL KEYBOARD

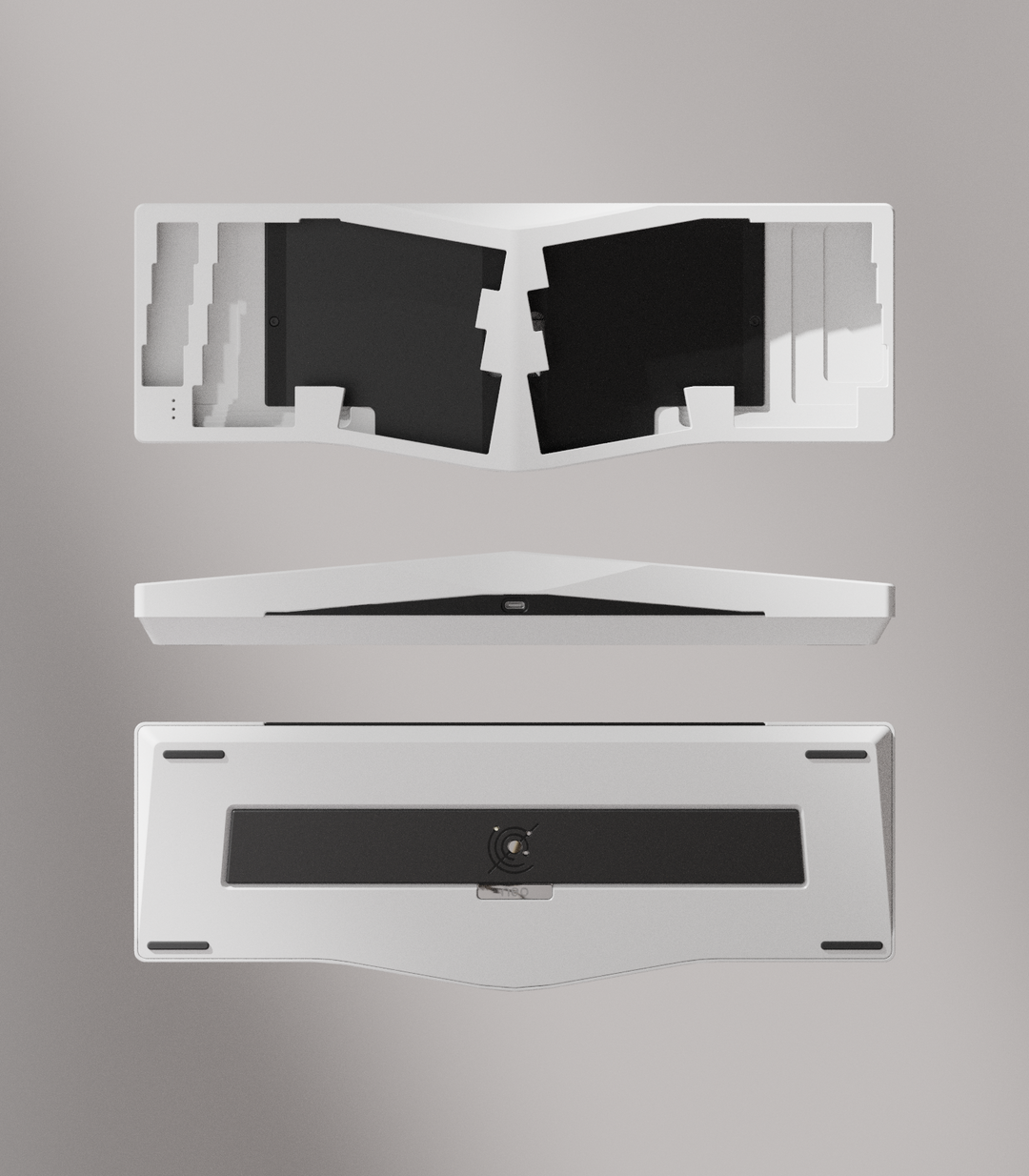

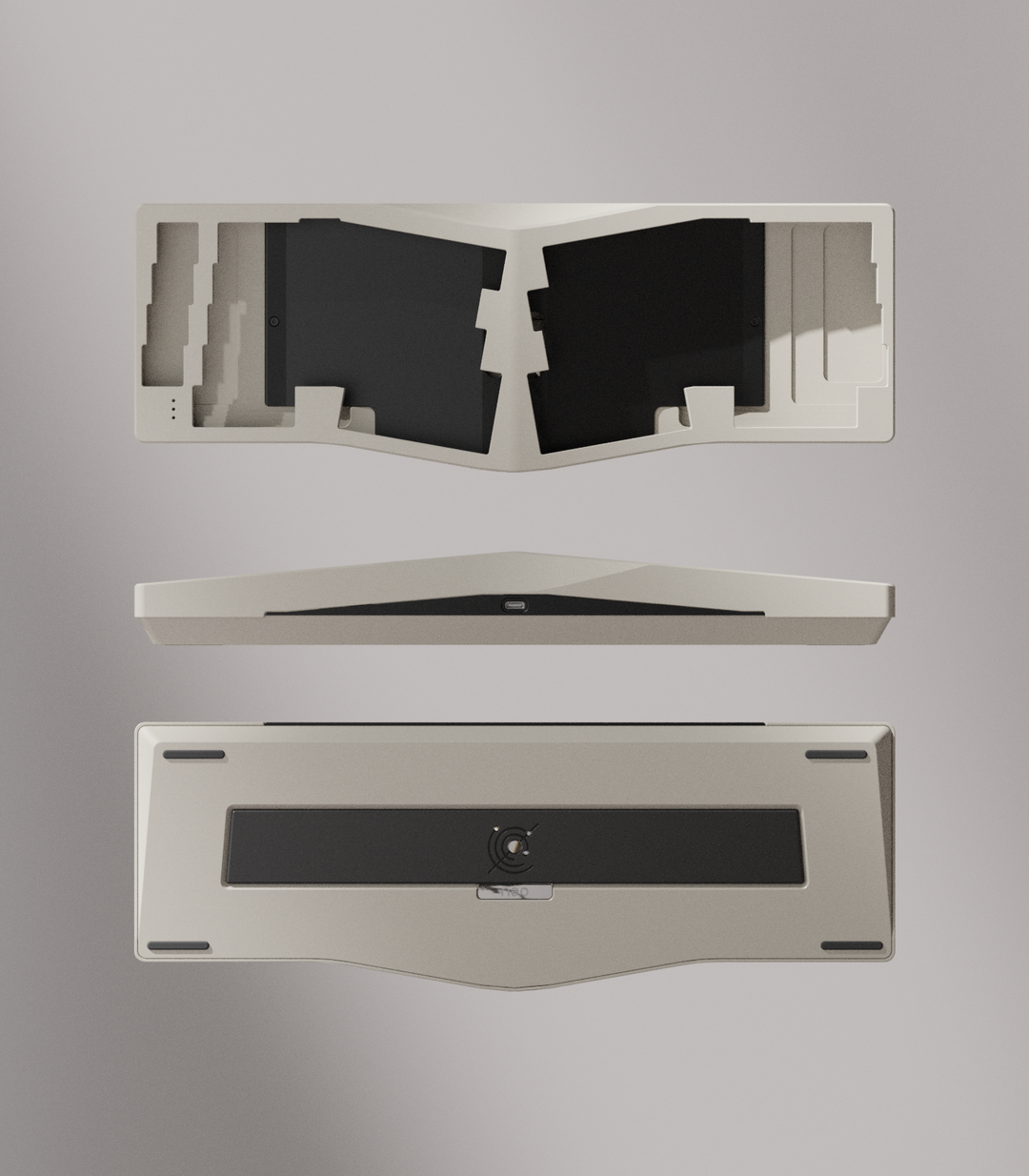

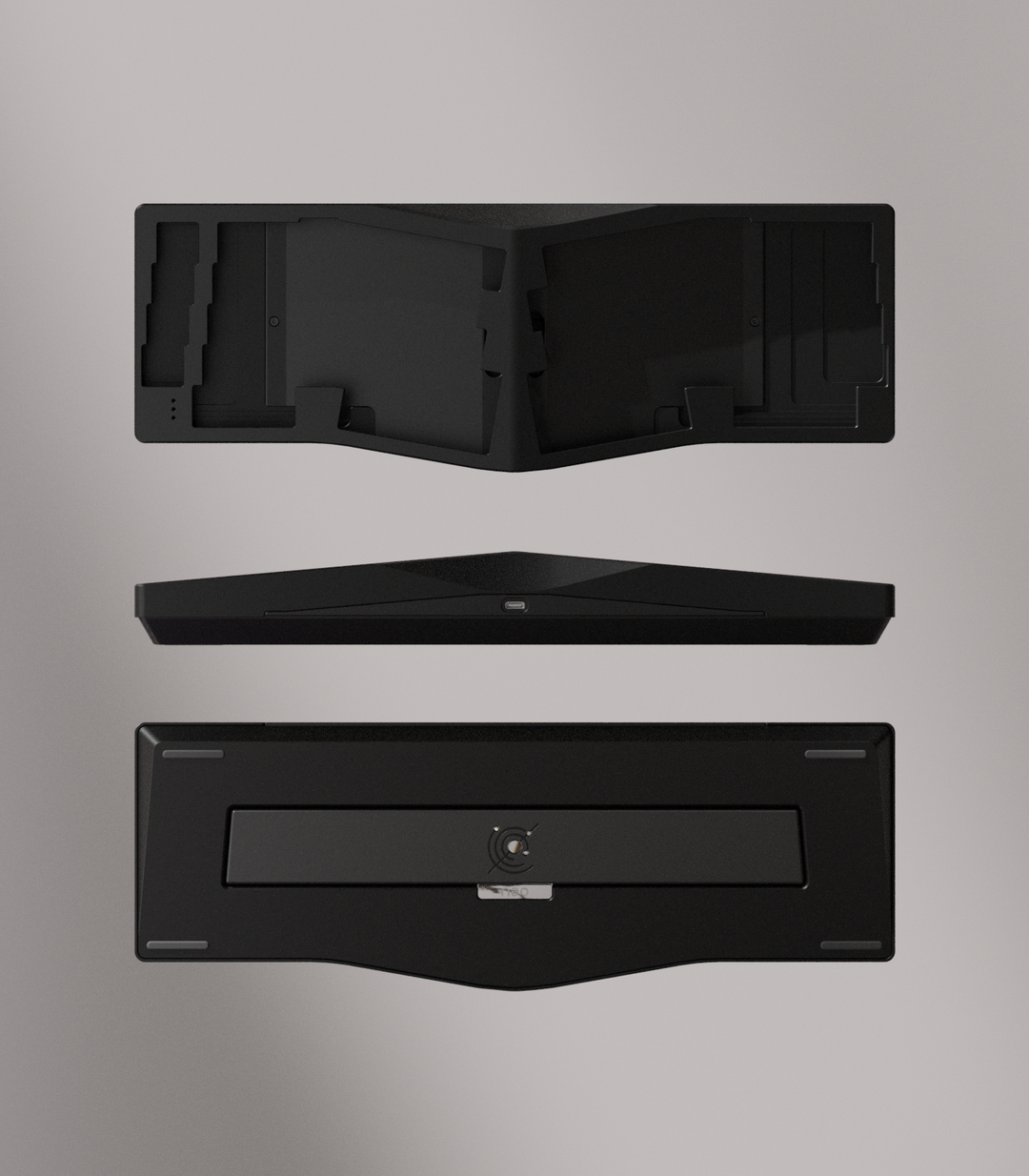

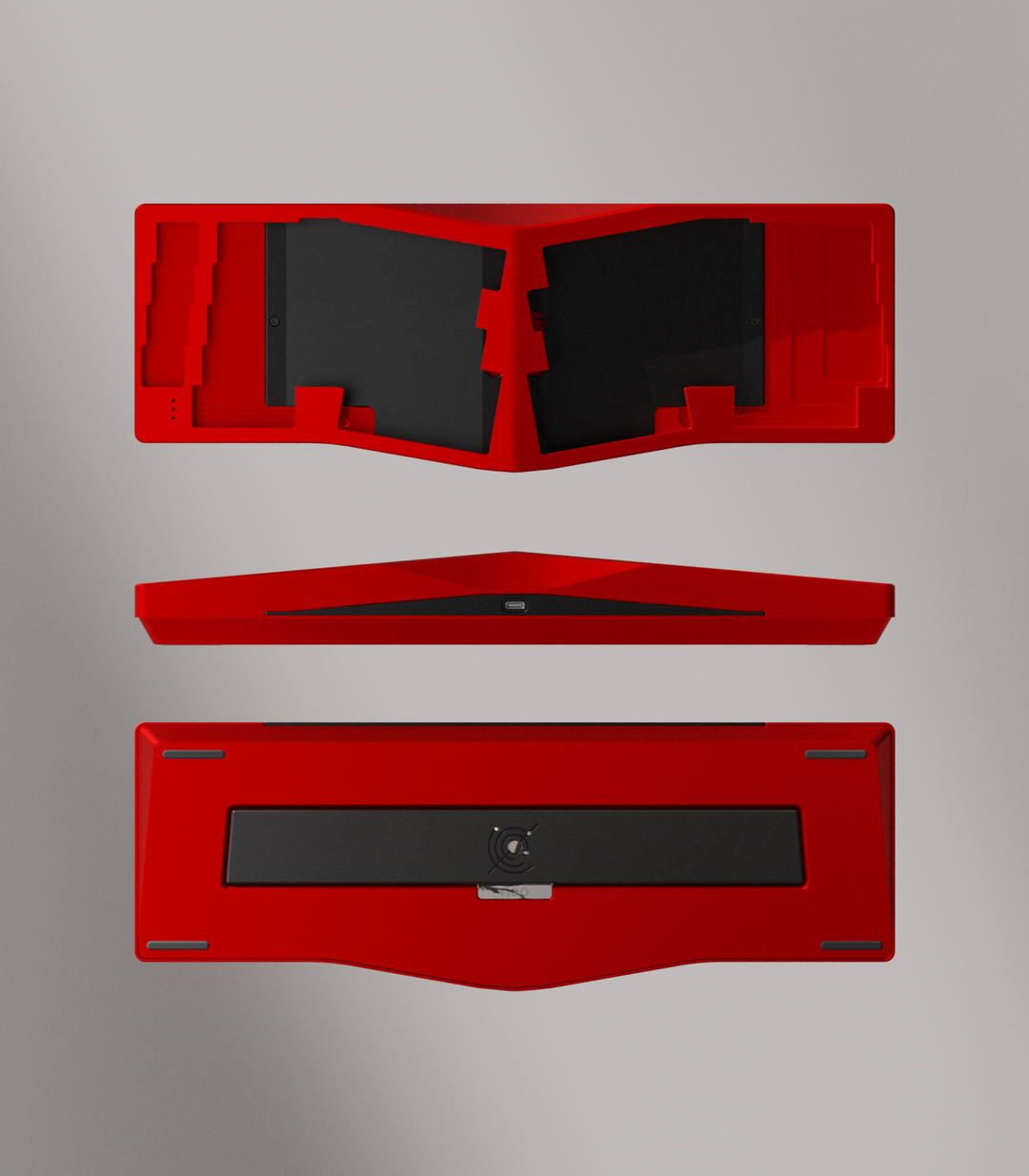

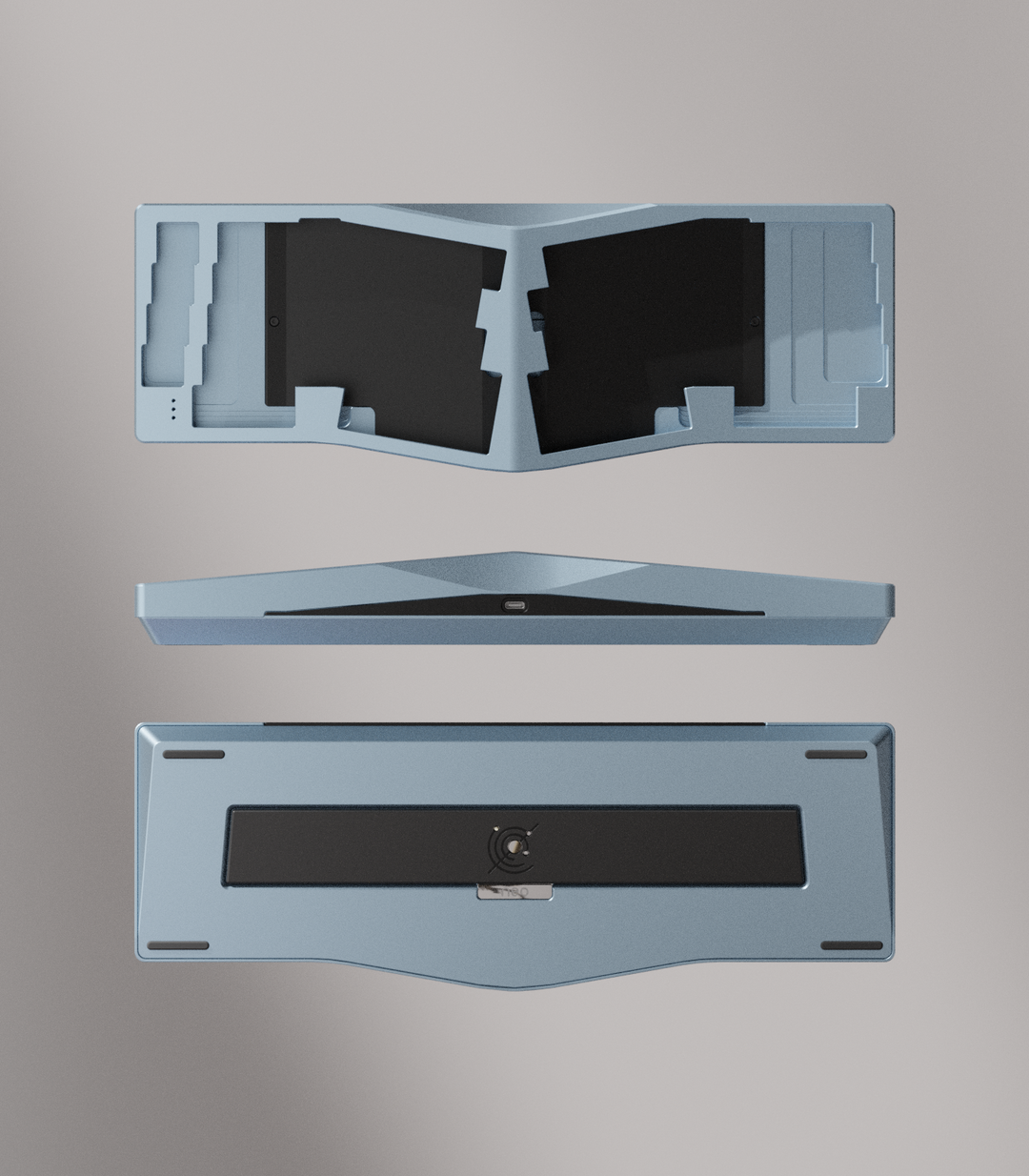

Keyboard Case

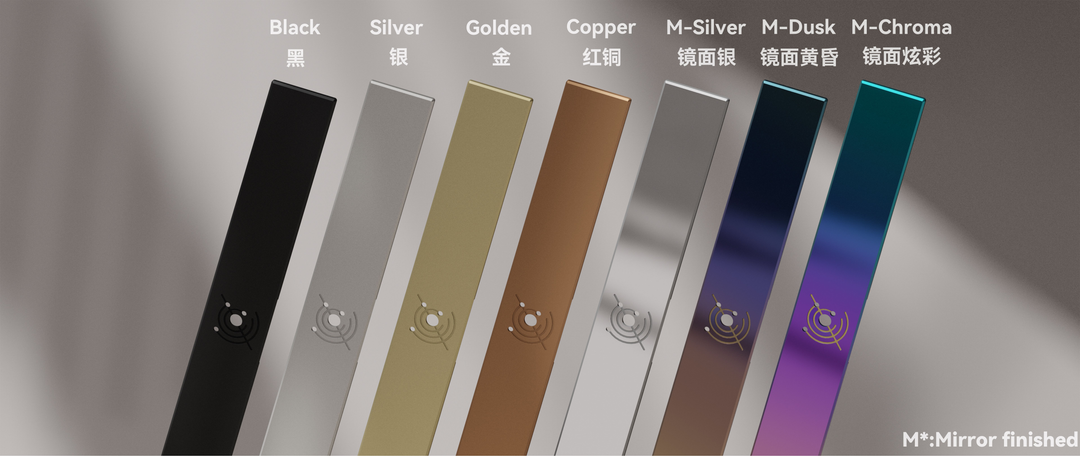

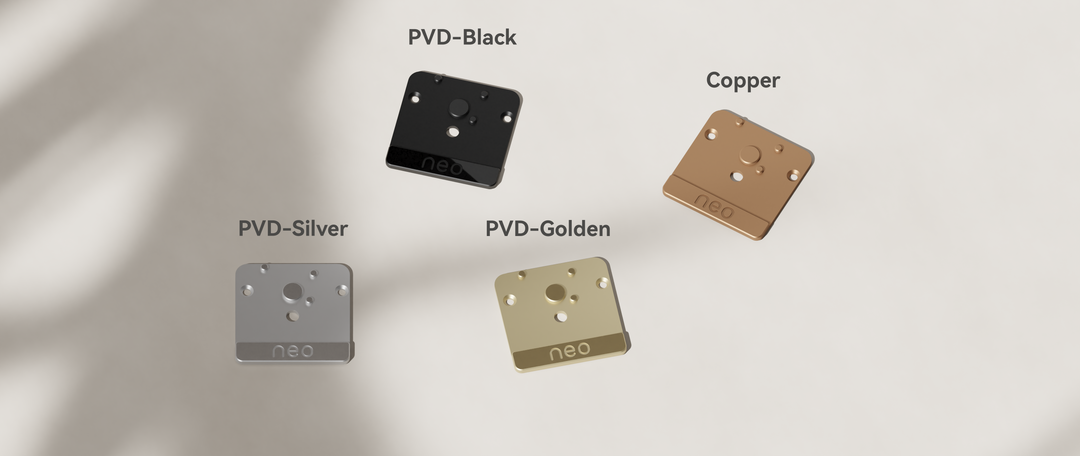

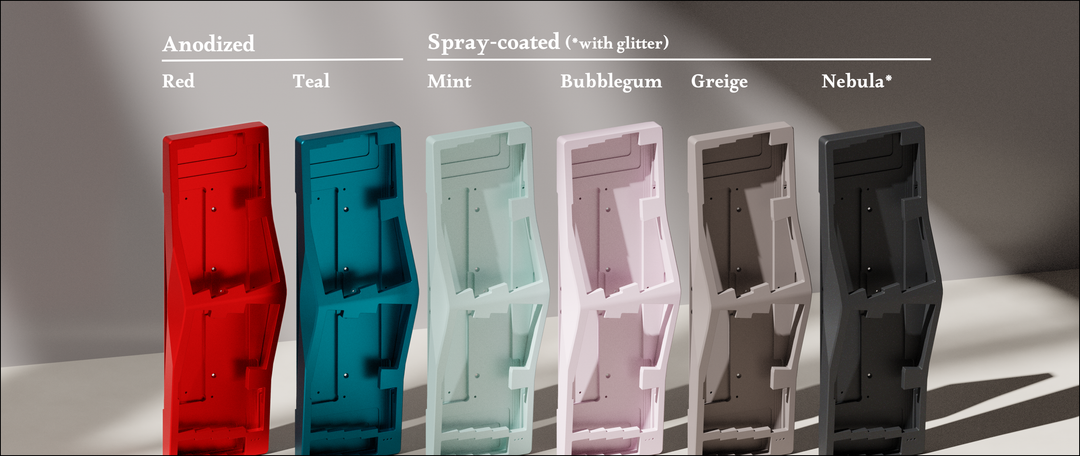

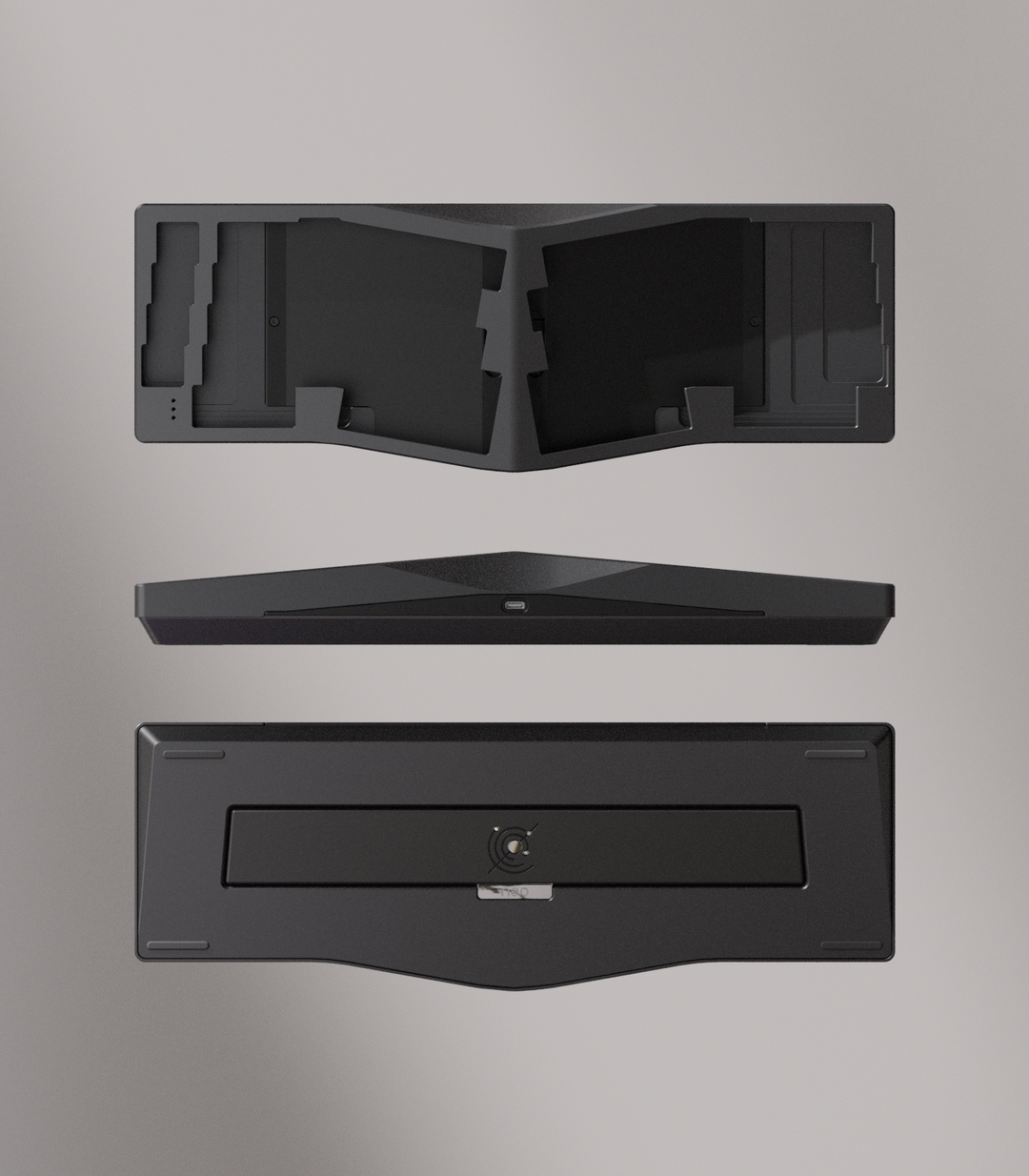

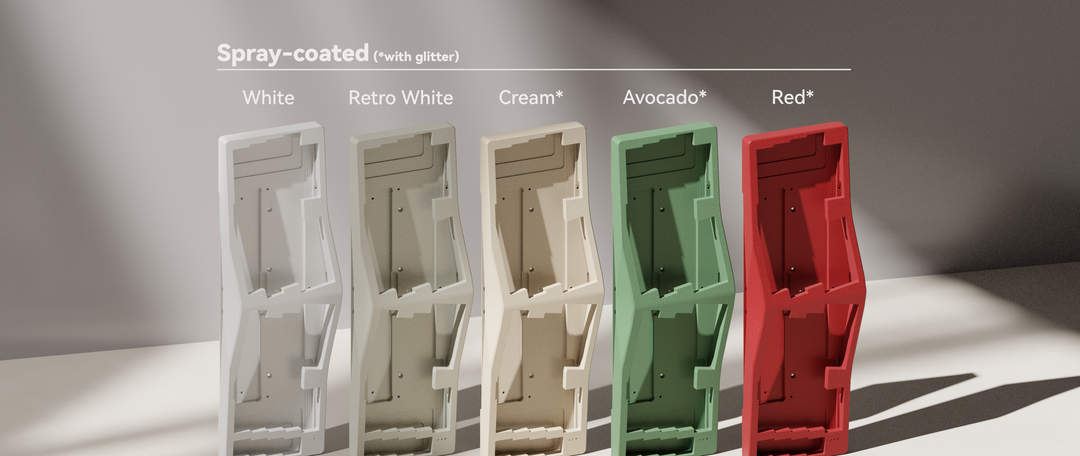

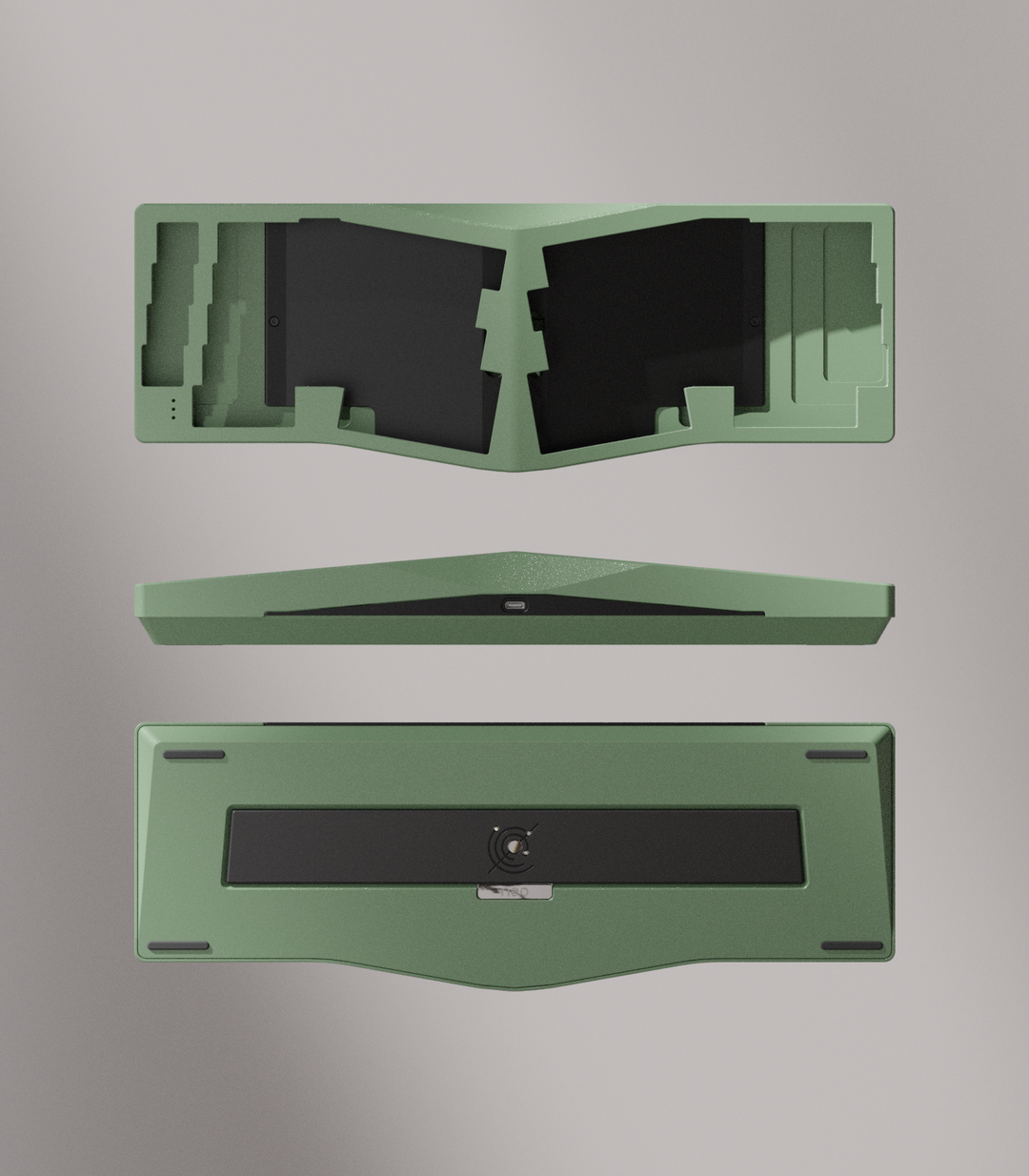

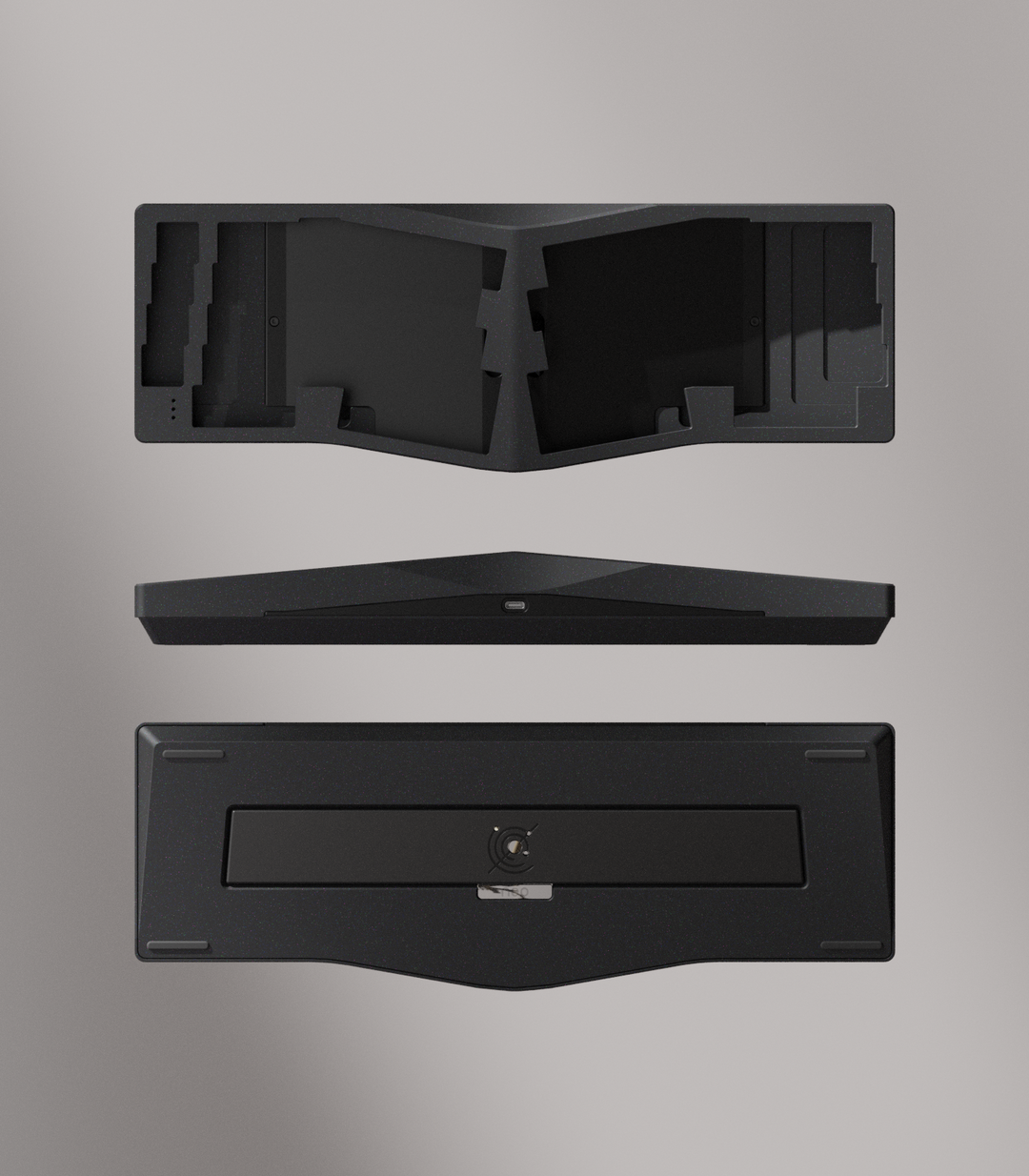

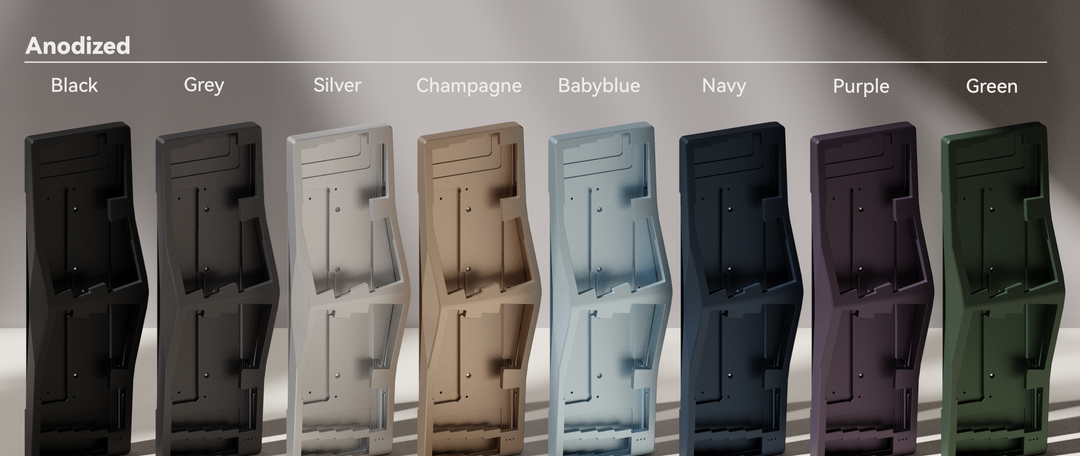

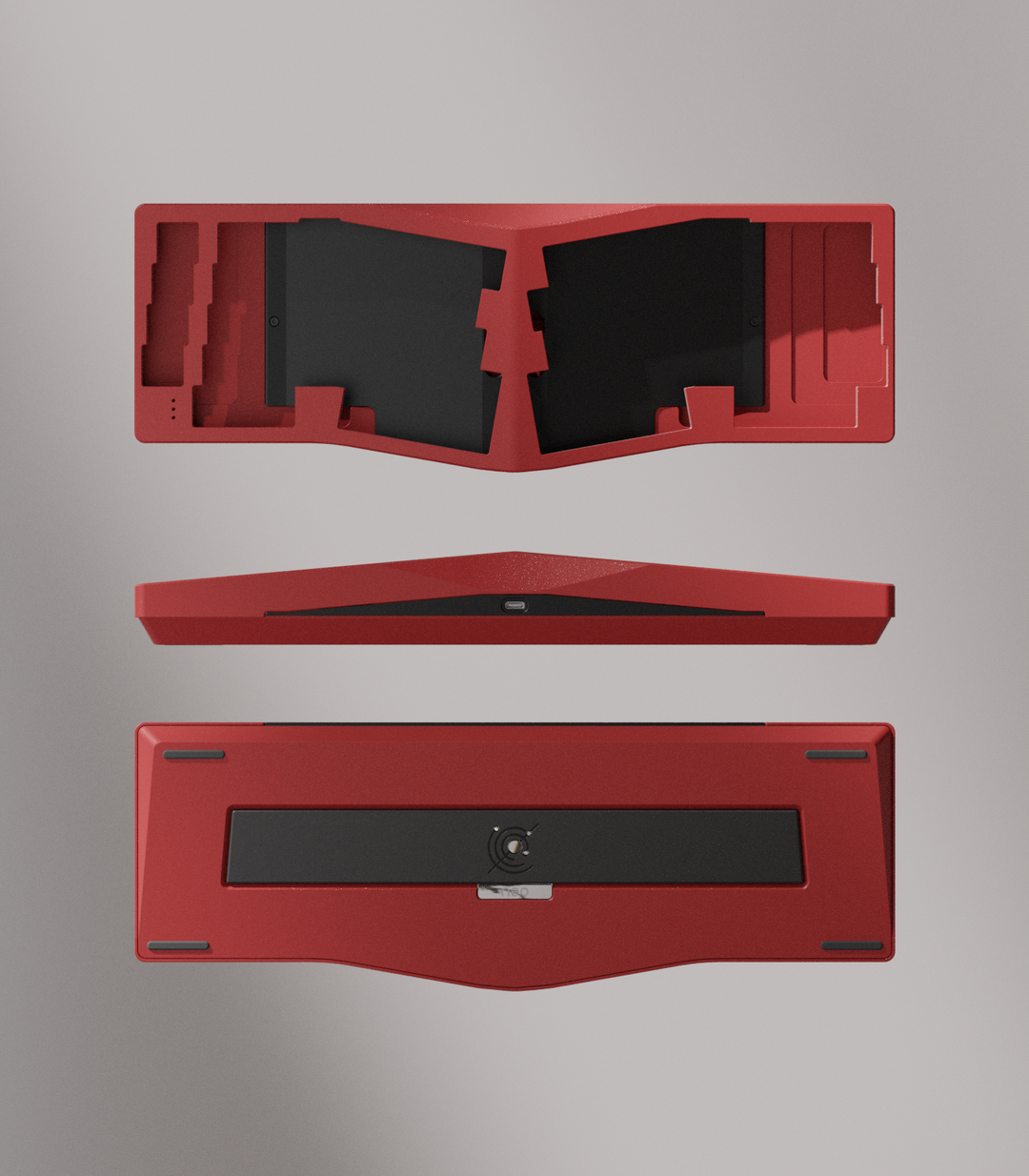

Case material: 6063 aluminum. Spray-coated and mirror PVD weights are made of stainless steel, while the copper weight is, as its name suggests, made of copper.

PCB

Tri-mode Hotswap PCB
- 1.6mm thick, non-flex cut
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Wired Hotswap PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Solder PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB

PLATE

Offers five plate options:

Hard → Soft: Carbon Fiber > Aluminum > FR4 > POM > PP

Clack → Thock: Carbon Fiber > Aluminum > FR4 > POM > PP

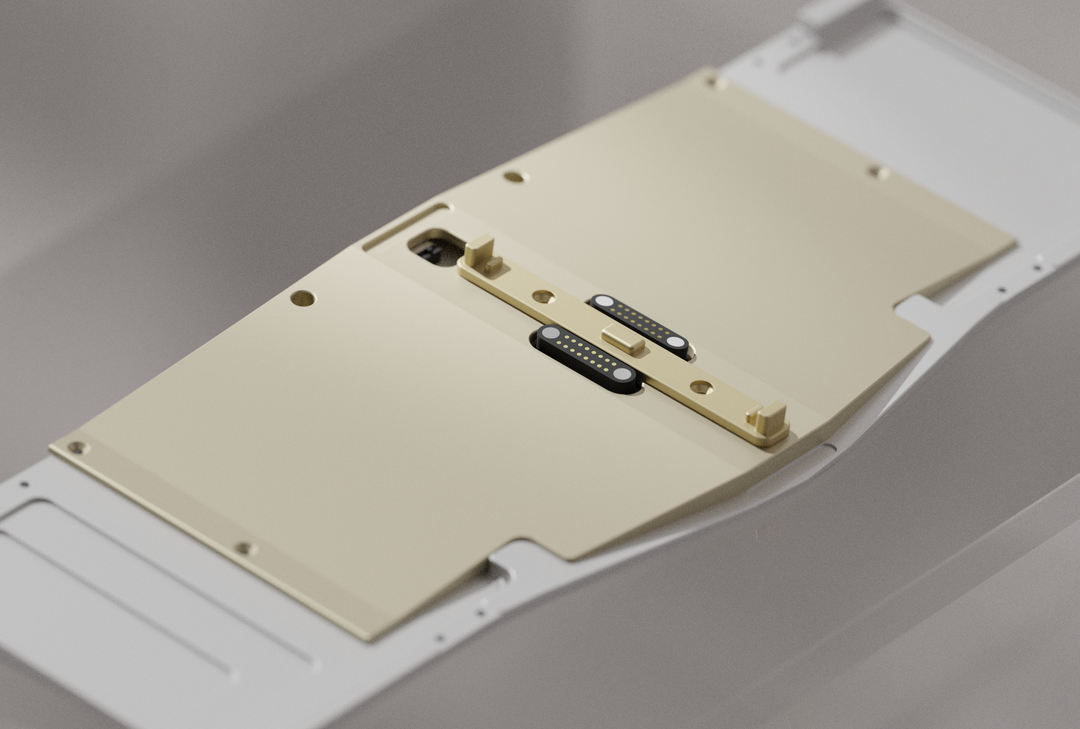

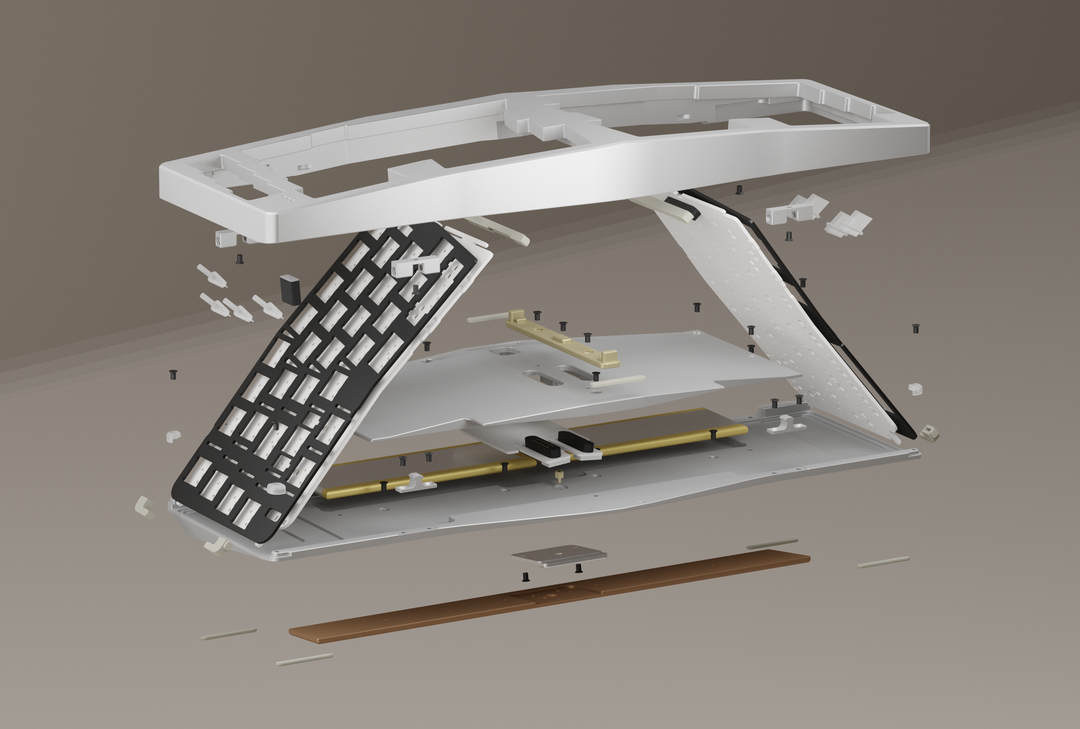

The ball-catch mechanism and magnetic connectors eliminate the need for screws during construction!

Available with PP, PC POM, FR4, Aluminum and Carbon Fiber Plate.

Hard ———————————————> Soft:
Carbon Fiber > Aluminum > FR4 > POM > PC > PP

Clack ———————————————> Thock:
Aluminum > Carbon Fiber > FR4 > POM > PC > PP

All information about this keyboard can be found on the official QwertyKeys product page.

Specification

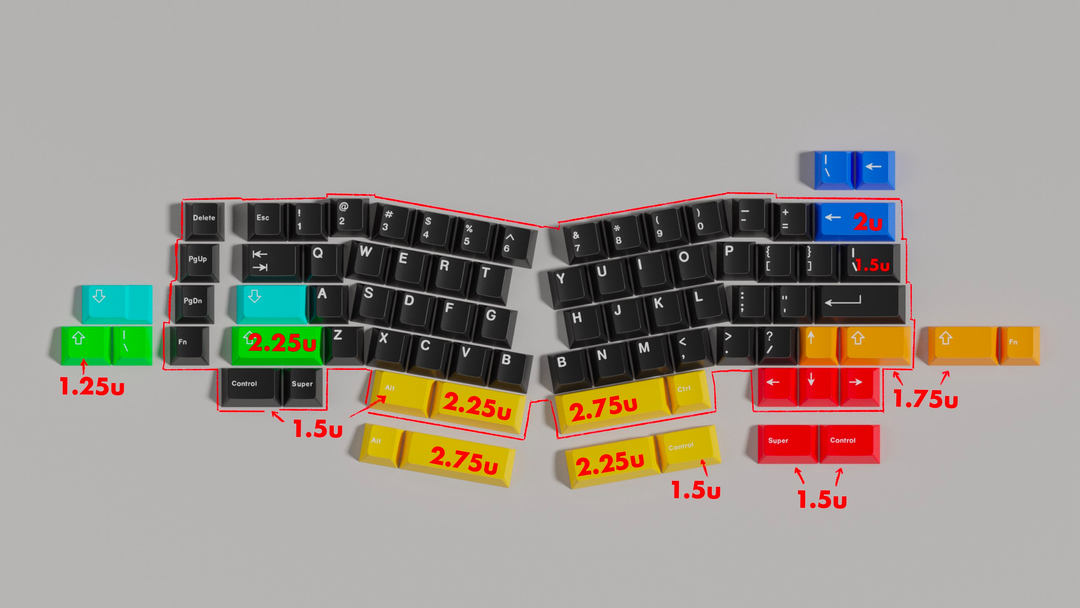

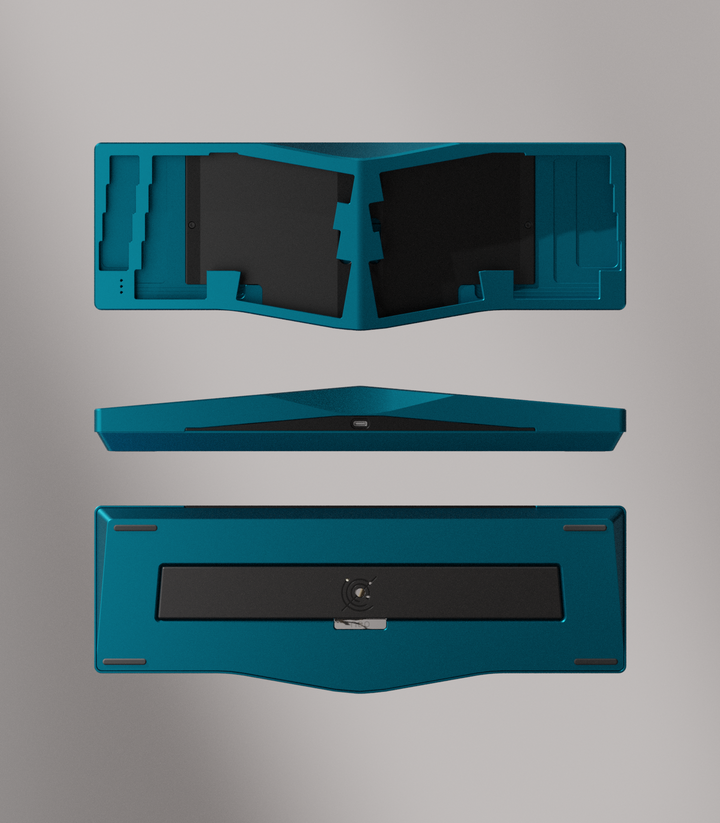

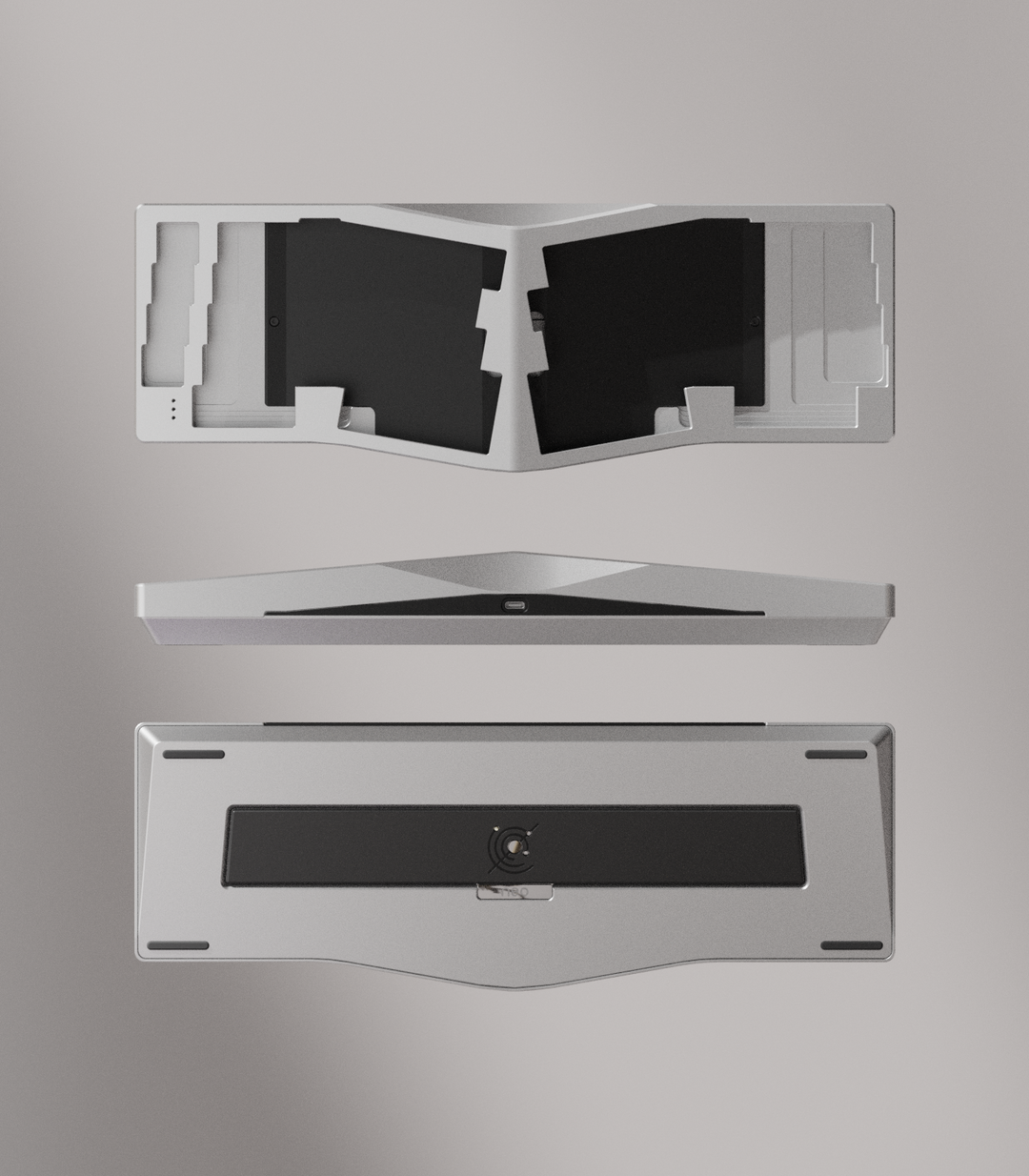

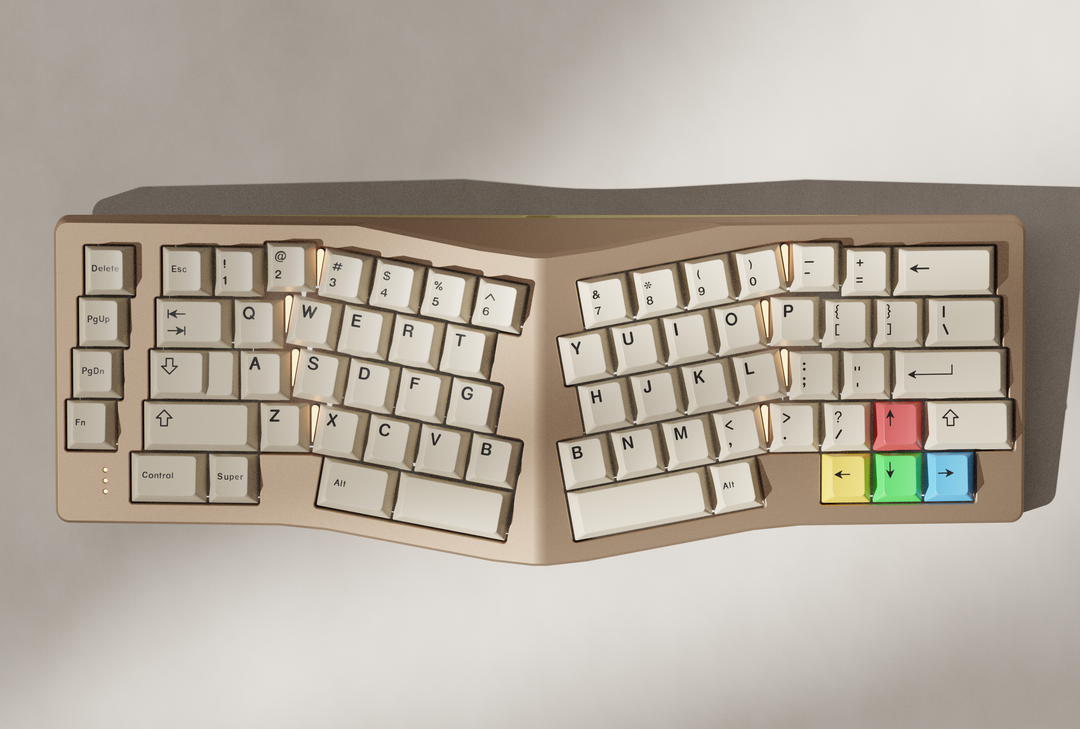

• Ergonomic Alice-Layout Aluminium Case
• Buildable with and without arrow keys

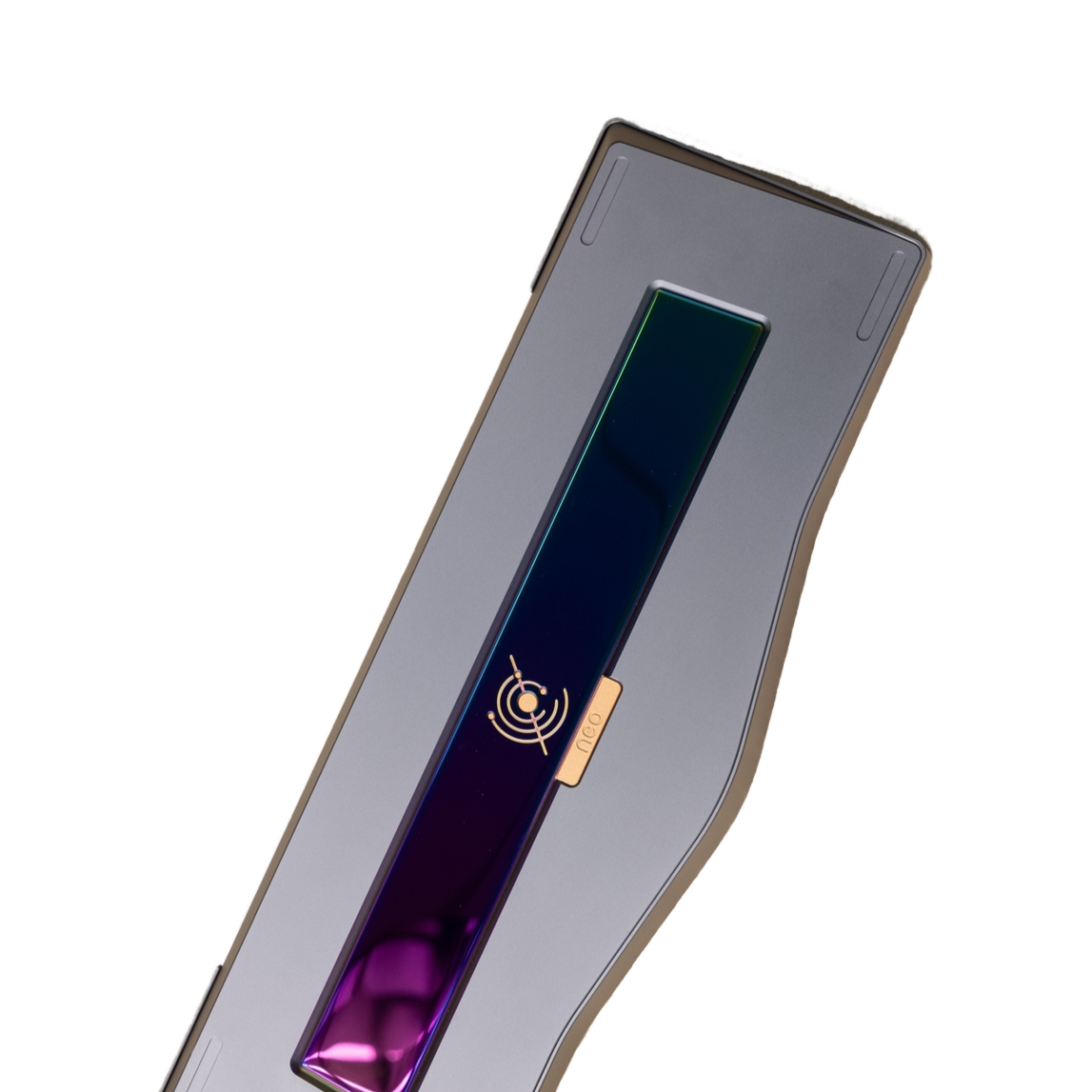

• Backside weight
• Innovative Gasket Mount
• Ball-catch mechanism and magnetic connectors for screwless design
• The Tri-Mode PCB supports Wired, 2.4 GHz wireless and Bluetooth connections.
• South facing hot-swap sockets (some rotated for multi-layout support)
• Includes:
  - Neo Ergo Case (Top+Bottom+Kernel+Weight+Badge), PCB & Plate of choice
  - Preinstalled external Weight
  - Tri-Mode PCB includes two 2200mAh batteries and 2.4GHz USB Dongle
  - Poron Case Foam, PE Foam, PCB Foam
  - USB-C Daugtherboard preinstalled
  - Gaskets for Gasket Mount
  - Keyboard carrying case
  - 1x Keycap & Switch Puller and Screwdriver
  - 1x Set of PCB Clip-In Neo Stabilizers
  - USB-C Cable

This product is a barebone keyboard kit without Switches and Keycaps, these need to be acquired separately. The oxidation of copper weights is unavoidable due to the characteristics of these materials.
