  • Preorder

NEO80 CU is a TKL mechanical keyboard kit part of the CU premium series. A proven favorite among enthusiasts looking for functionality and great design. NEO80 CU features a solid copper bottom case that delivers both striking visual appeal and satisfying weight. This foundation not only looks premium but also creates the ideal acoustic base for a crisp, pure typing sound.
Price
Regular price $24200
Regular price Sale price $24200
/
Details

This product is a barebone keyboard kit without Switches and Keycaps, these need to be acquired separately. The oxidation of brass and copper weights is unavoidable due to the characteristics of these materials.


Specifications

  • TKL Aluminium Keyboard Body
  • Brass or Copper Bottom Case
  • Supports ISO and ANSI

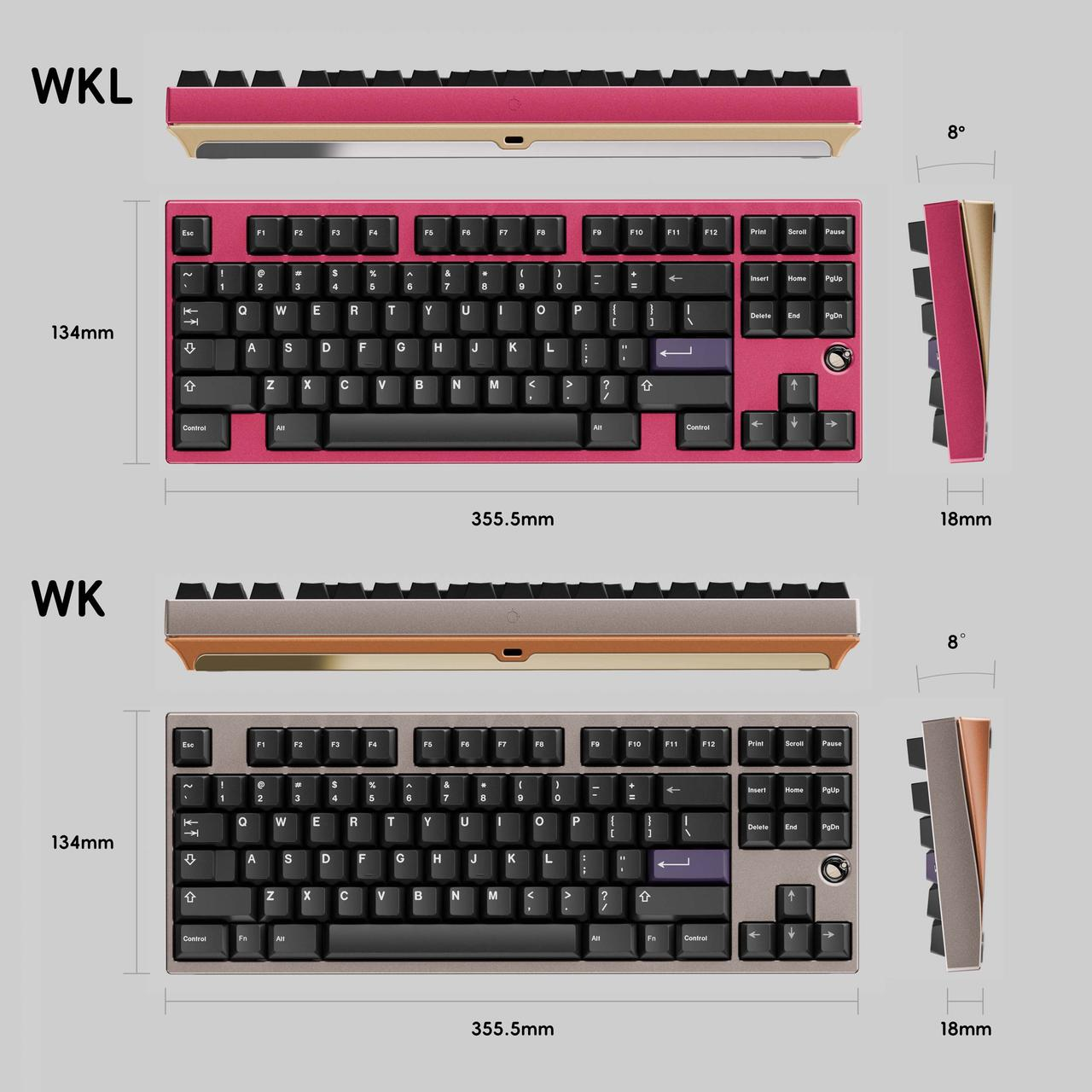

Keyboard Case

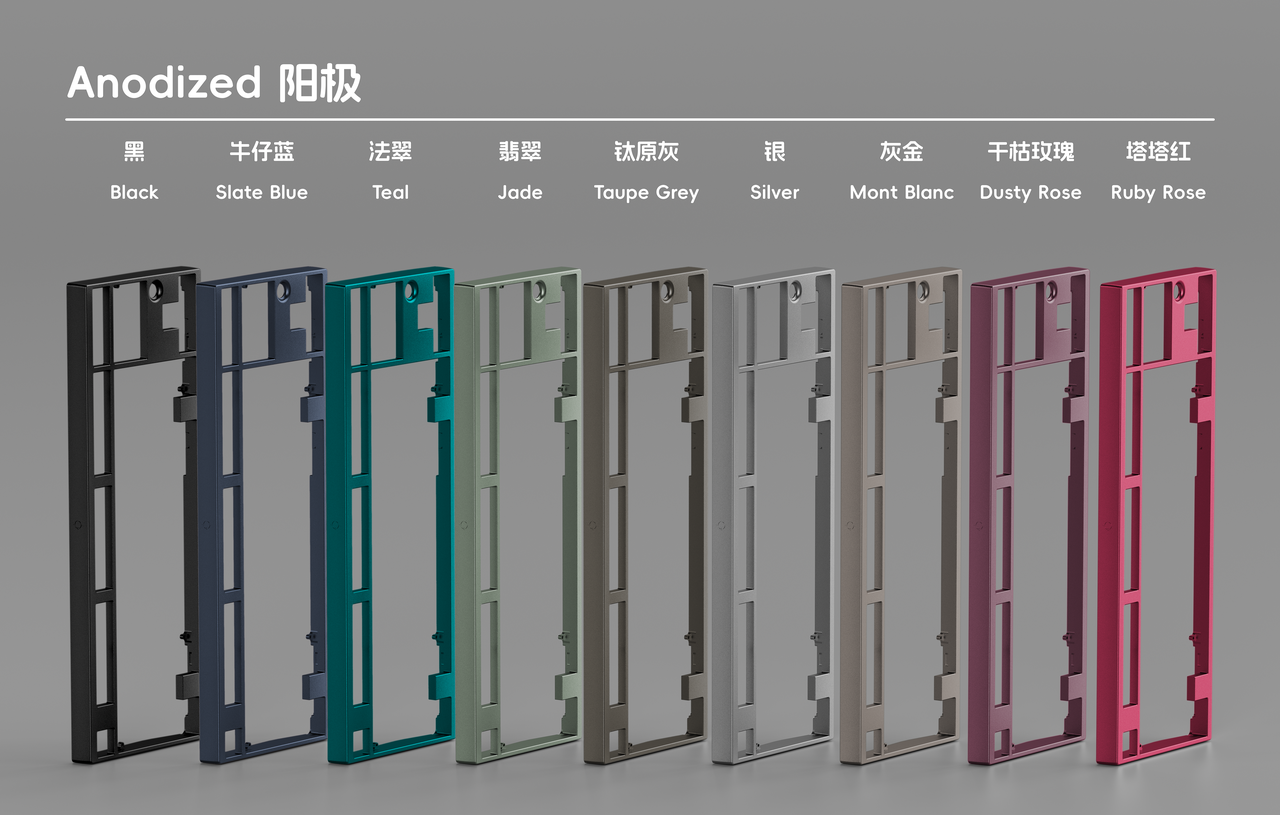

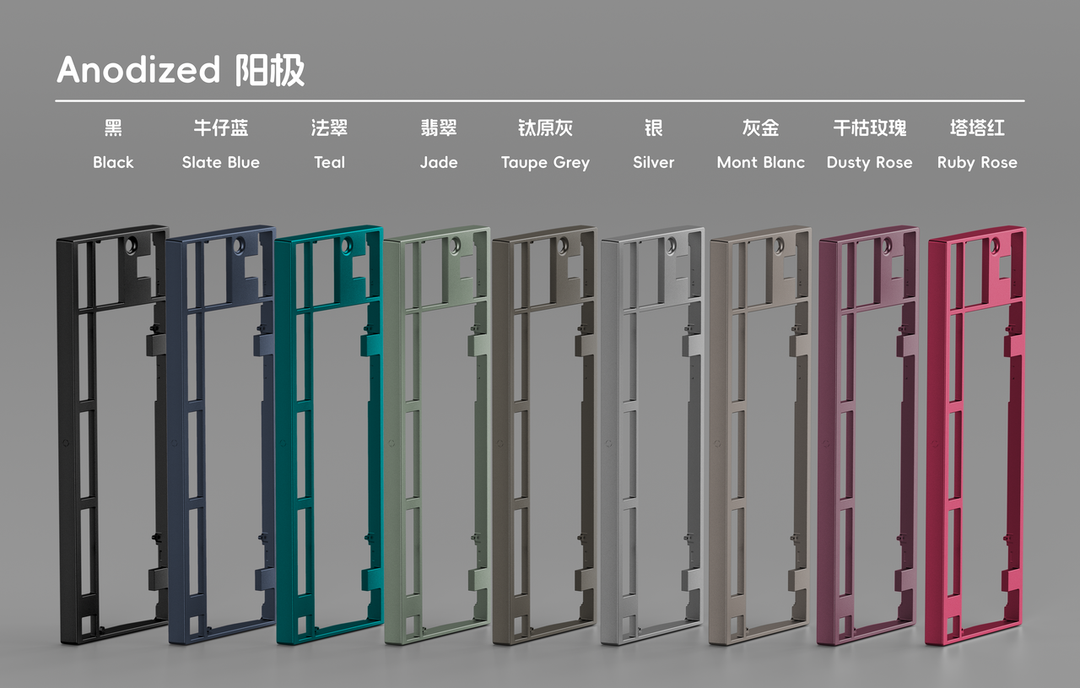

Case material: 6063 aluminum. Colors anodized with Copper and Brass Backweights.

Typing angle: 8 degree
Front height: 18 mm
Size: 80% TKL,** 355.5mm * 134 mm

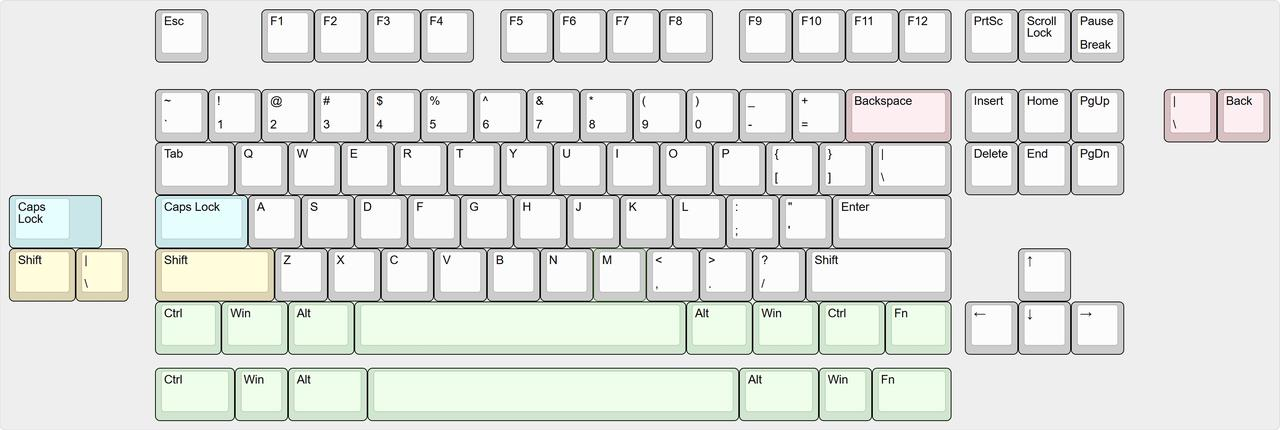

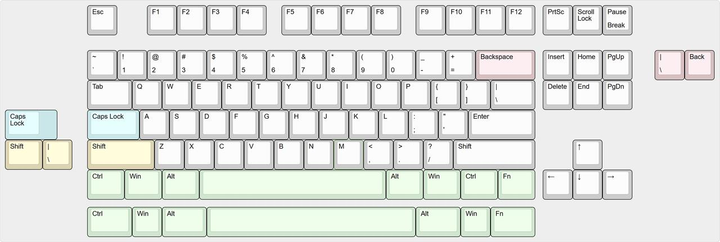

Layout: WK/WKL

Weight: Around 4.5 kg after assembly

Tri-mode ANSI Hotswap PCB (Non-flex Cut)

  • 1.6mm thick
  • Support USB-C, Bluetooth, and 2.4GHz connection
  • Support only ANSI layout
  • NKRO
  • Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
  • NO Per-key RGB

Tri-mode ISO Hotswap PCB (Non-flex Cut)

  • 1.6mm thick
  • Support USB-C, Bluetooth, and 2.4GHz connection
  • Support only ISO layout
  • NKRO
  • Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
  • NO Per-key RGB

Wired Hotswap PCB (Non-flex Cut)

  • 1.6mm thick
  • USB-C connection only
  • Support only ANSI layout
  • NKRO
  • Polling rate: 1000Hz
  • NO Per-key RGB

Solder PCB (Non-flex Cut)

  • 1.6mm thick
  • Mill-max compatible
  • USB-C connection only
  • Support both ANSI and ISO layout
  • NKRO
  • Polling rate: 1000Hz
  • NO Per-key RGB

PLATE

Offers five plate options:


Hard → Soft: Carbon Fiber > Aluminum > FR4 > POM > PP

Clack → Thock: Carbon Fiber > Aluminum > FR4 > POM > PP

More Info
https://qwertykeys.notion.site/neo80-cu
What's in the box?

Case

  • For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed
  • For orders with wired PCBs, two stainless steel fillers come pre-installed
  • For orders with solder PCBs, two foam fillers come pre-installed （If you purchase the stainless steel battery compartment fillers extra parts, these will be preinstalled and foam fillers will no longer be included.）

PCB

  • PCB of your choice
  • 1x PE sheet
  • 1x PCB Foam
  • Tri-mode PCB comes with a 2.4Ghz dongle

Plate of your choice

Poron case foam

PCB Daughterboard and magnetic connectors - installed

Gaskets

30-duro O-ring

Rubber feet in 2 colors

Backup screws

Stand-offs included with the hotswap PCB

Keyboard carrying case

1x Keycap & Switch puller

1x Screwdriver

1 set of PCB clip-in NeoStab

USB-C cable

Plate fork




  • PCB Kit






  • Plate of your choice
  • Poron case foam
  • PCB Daughterboard and magnetic connectors - installed
  • Gaskets
  • 30-duro O-ring
  • Rubber feet in 2 colors
  • Backup screws
  • Stand-offs included with the hotswap PCB
Shipping info

Preorder ends January 2nd.

Shipping Estimates around 2-3 months after ordering.

Pairs well with

The Star Ring Accent Light

Inspired by massive celestial bodies, whose gravity warps surrounding space, the Neo80 Cu's top case features a multi-layered "star ring" light that captures the brilliance of a planet against the dark night sky. The central "planet" features a triple-etched aluminum finish, surrounded by a mirrored stainless-steel ring, creating a striking "floating planet" effect.

Close-up of a silver ring with yellow gemstones on a textured surface - neo80 keyboard

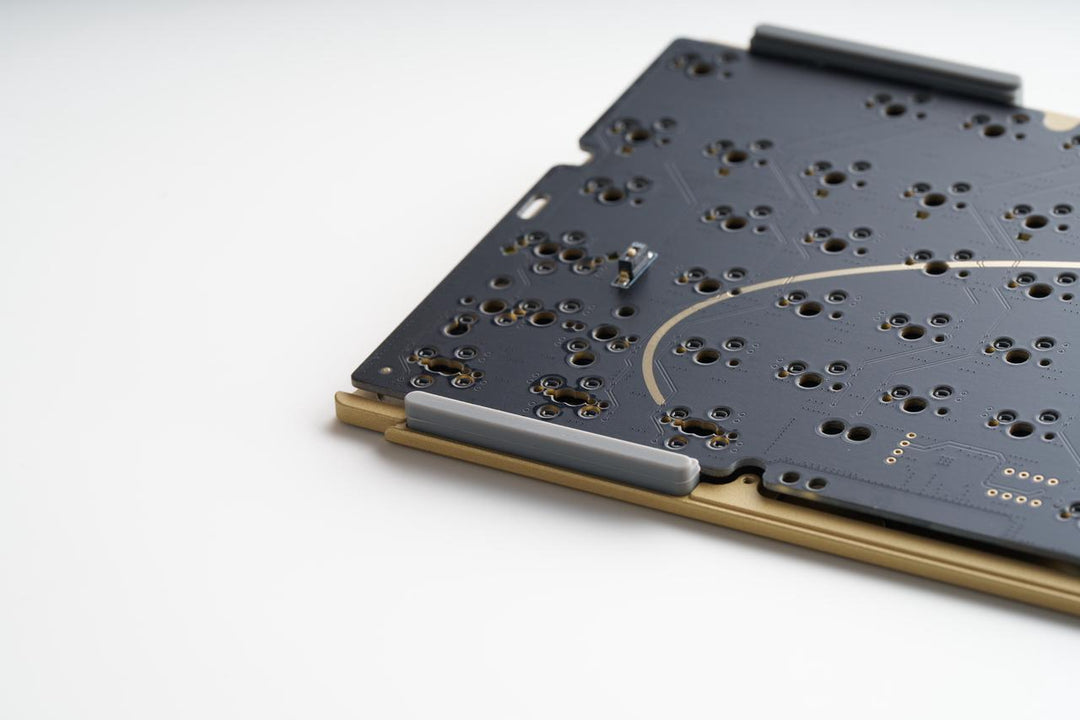

Poron Gasket Mount + Silicone Gasket Mount + Top Mount

We've integrated the Poron Gasket structure into the Neo80 Cu. Unlike traditional Poron Gaskets that require gluing to the case, we've designed special grooves in the bottom case to securely hold the Poron Gaskets in place. This innovation allows for hassle-free replacement and ensures exceptional durability over time. Of course, we've also retained the silicone gasket mount structure as an alternative option for those who prefer it.

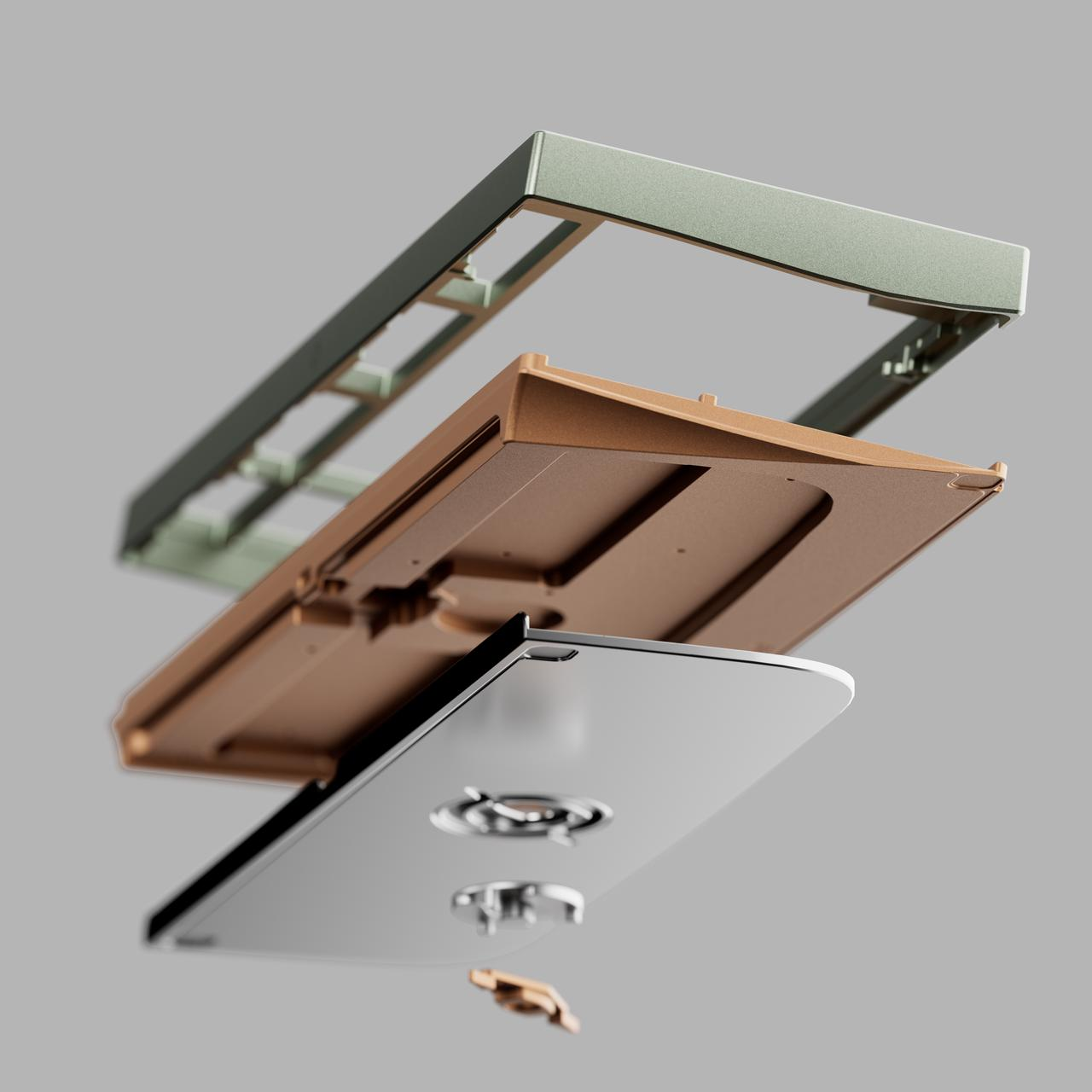

Full Copper & Brass Bottom

Despite its large 80% layout, we've maintained the Cu series's signature all-copper bottom design—bringing the keyboard's total weight to approximately 4.5 kg when fully assembled.
