FLY DAUGHTERBOARD

Price
Regular price $7.00
Regular price Sale price $7.00
Save $-7
/

Pairs well with

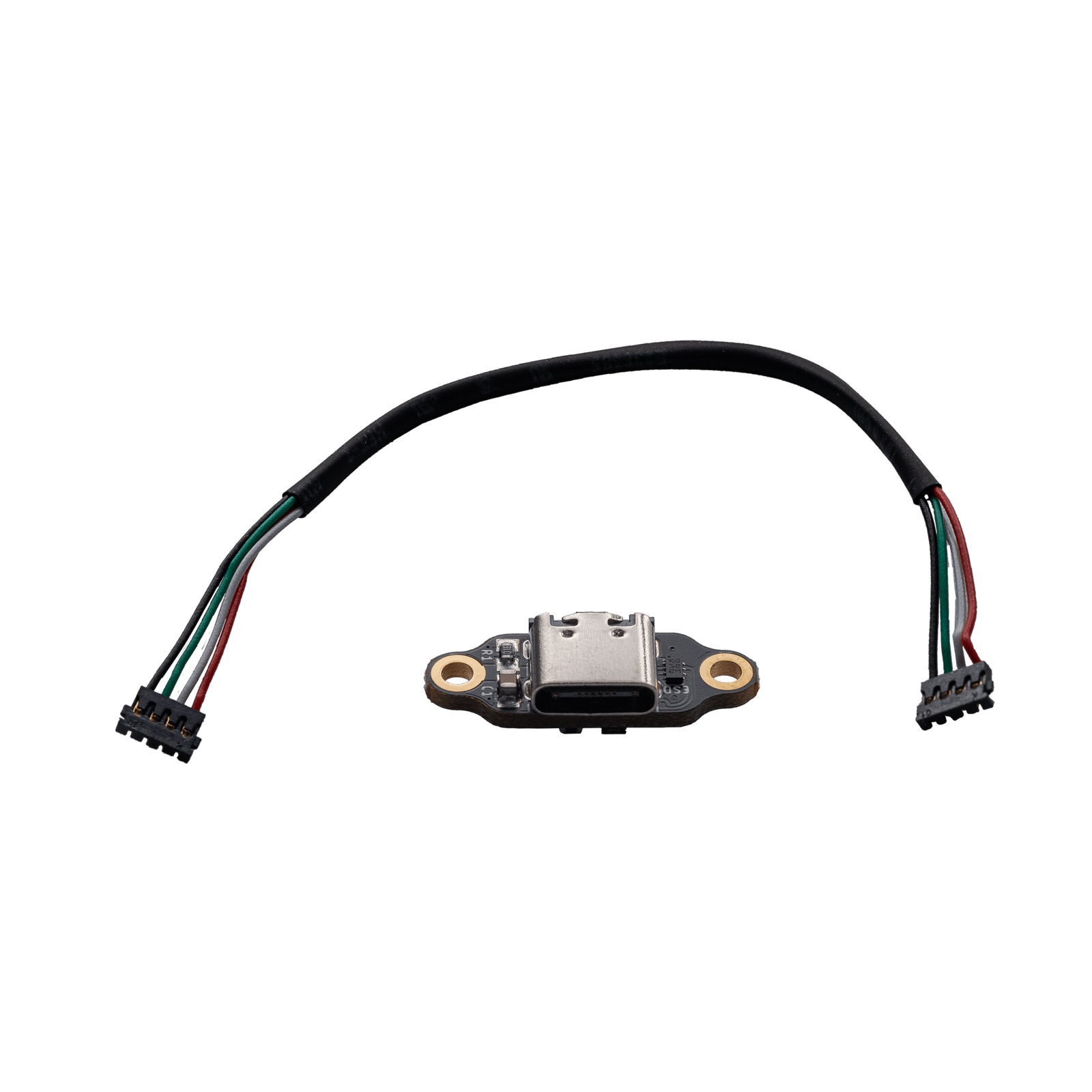

Fly Daughter Board (C-type) by Wolf

EZmate to EZmate Cable is included in Daughter Package

Specifications
- Molex Pico EZmate connector
- ESD chip with integrated bidirectional TVS diode for VBUS.
- Common mode filter for D+ and D-
- RC Filter on Shield
- 1A Trip Fuse



Fly Daughter Board 3D file
https://a360.co/3txMdFg

Molex Pico EZmate Specs
1) Female Connector
https://www.molex.com/molex/products/part-detail/pcb_headers/0781710004

2) Male Connector
https://www.molex.com/molex/products/part-detail/crimp_housings/0781720004
