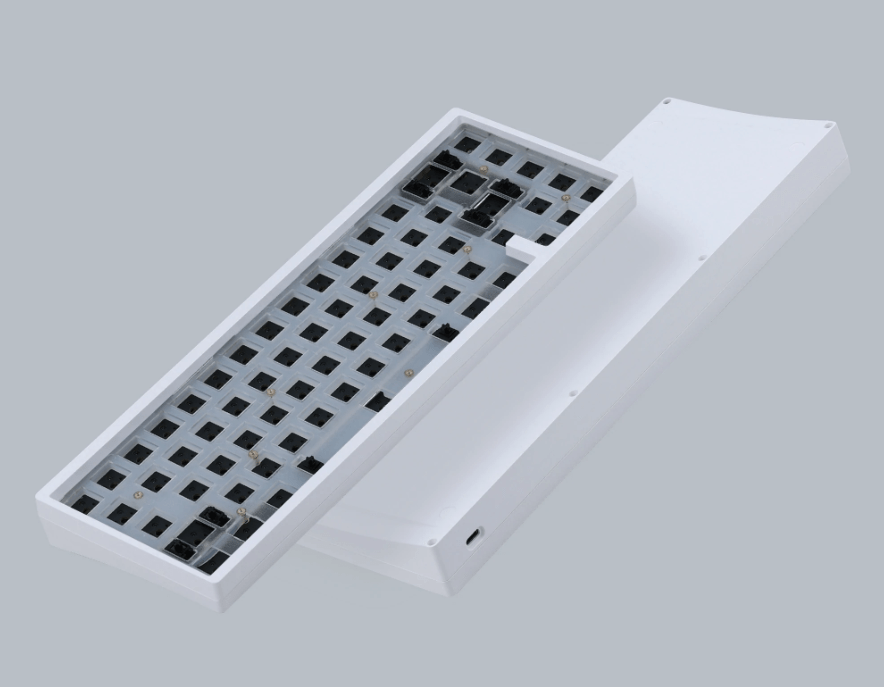

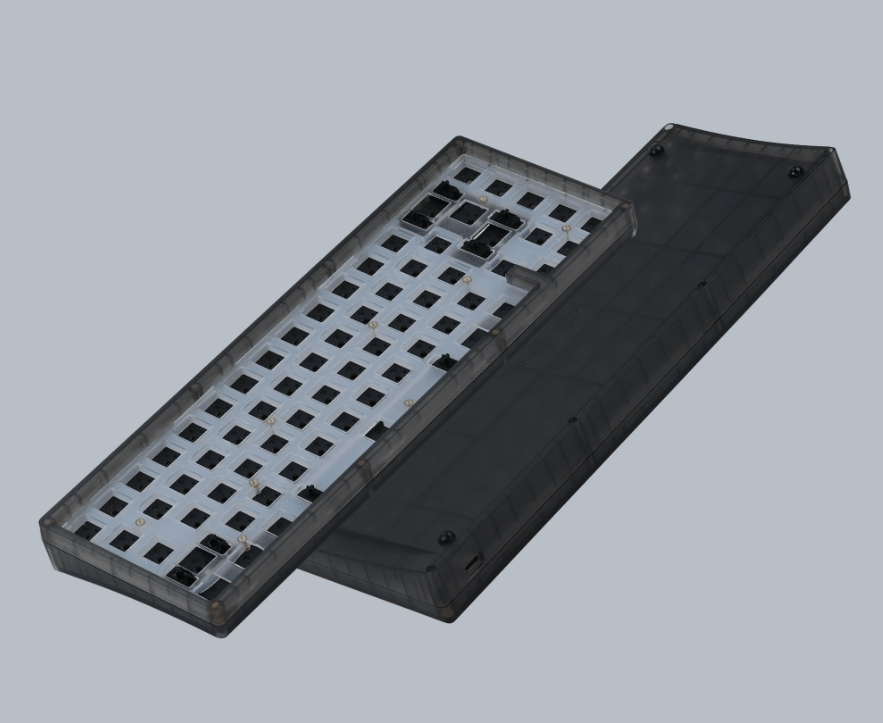

KBD67 LITE R4 KEYBOARD KIT

Get your hands on the KBD67 lite R4 and make it the ultimate in a customizable mechanical keyboard.

Almost everything you need to build a mechanical keyboard comes included. Pick switches and keycaps of your choice and build the keyboard you always dreamed at a killer price!
COLOR
CONNECTIVITY
LAYOUT
Price
Save 16%
/

Pairs well with

Specifications and Features

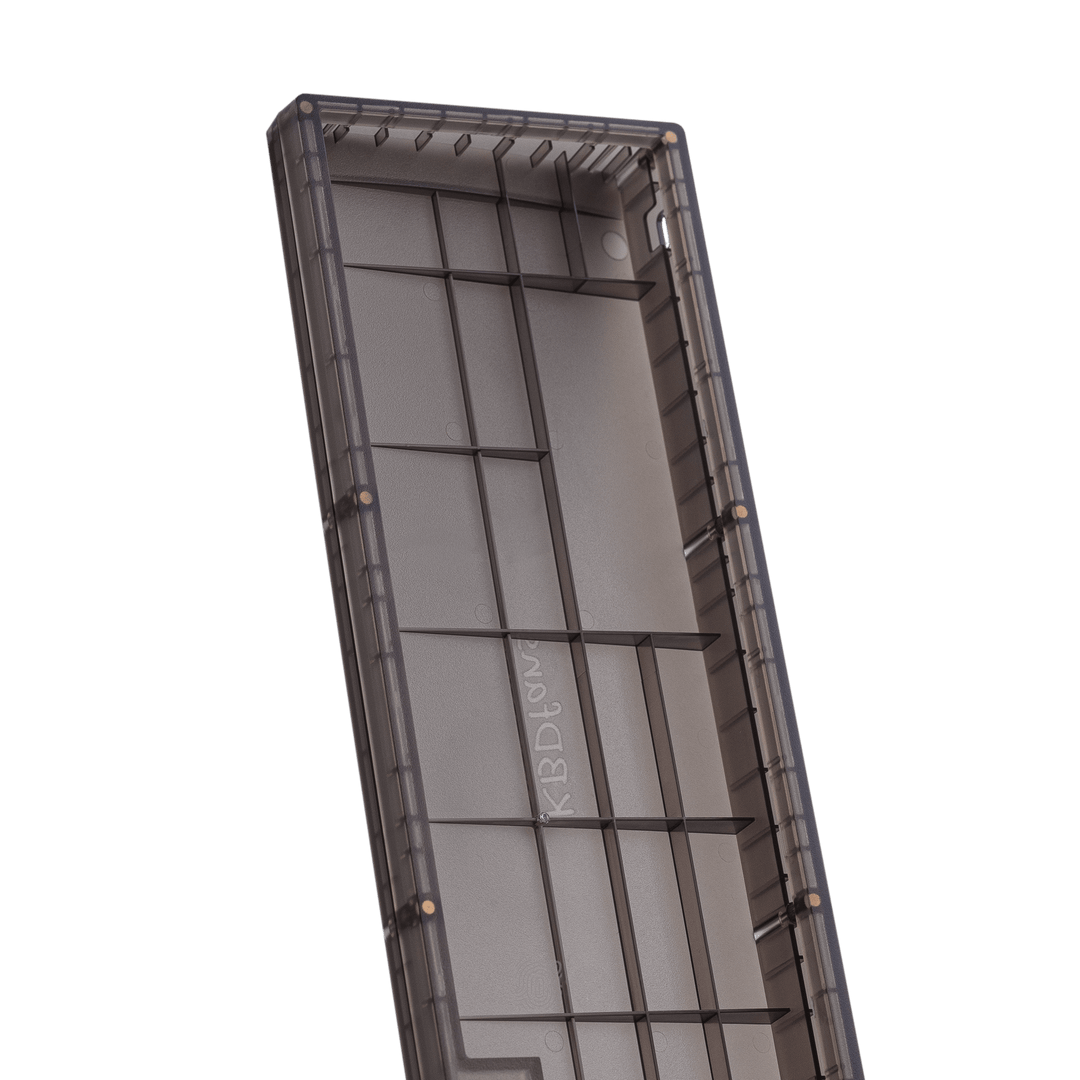

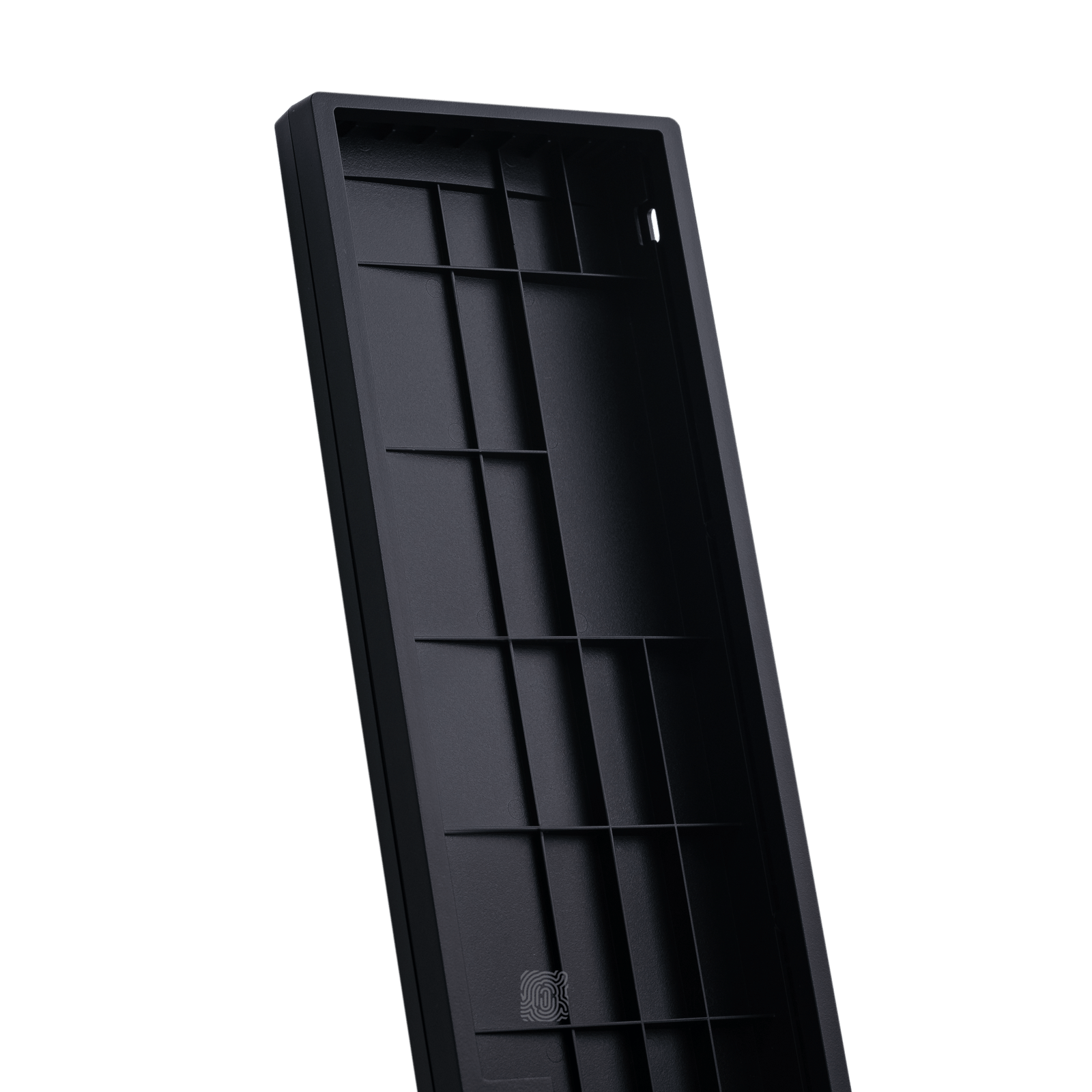

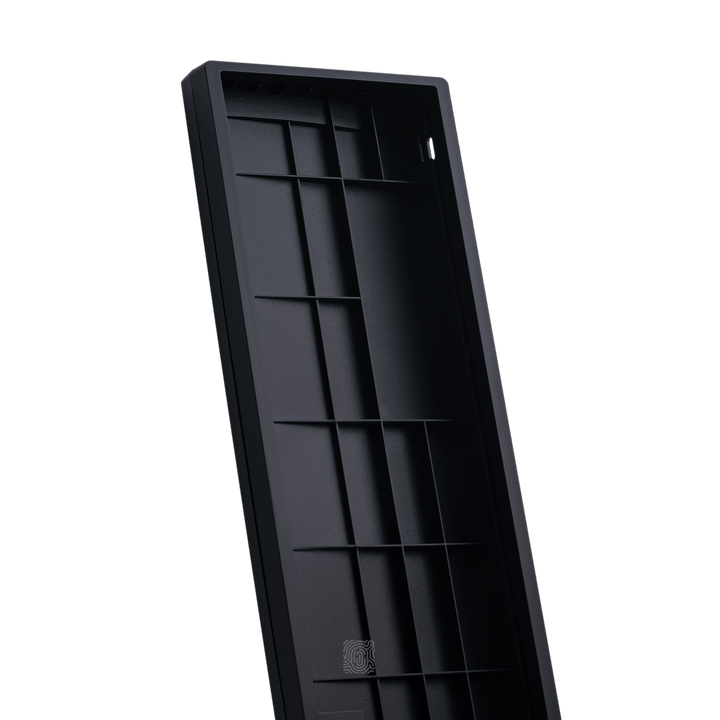

  • Top and bottom ABS plastic case
  • Mute silicone
  • Cherry screw-in stabilizers 60 set
  • Wired version supports VIA; Bluetooth version only supports TMK firmware
  • Wired version supports Per-key RGB and Hot-swap; Bluetooth version does not support RGB effects
  • Injection molding polycarbonate plate (No necessary to add stand-offs)
  • USB-C supports MAC, Windows, Linux, etc.
  • Compatible with MX and MX clone switches
  • KBD67 Lite Acceptable Quality Standards: Click
  • Made in China
  • Typing angle: 6 degree
  • Designed by KBDfans

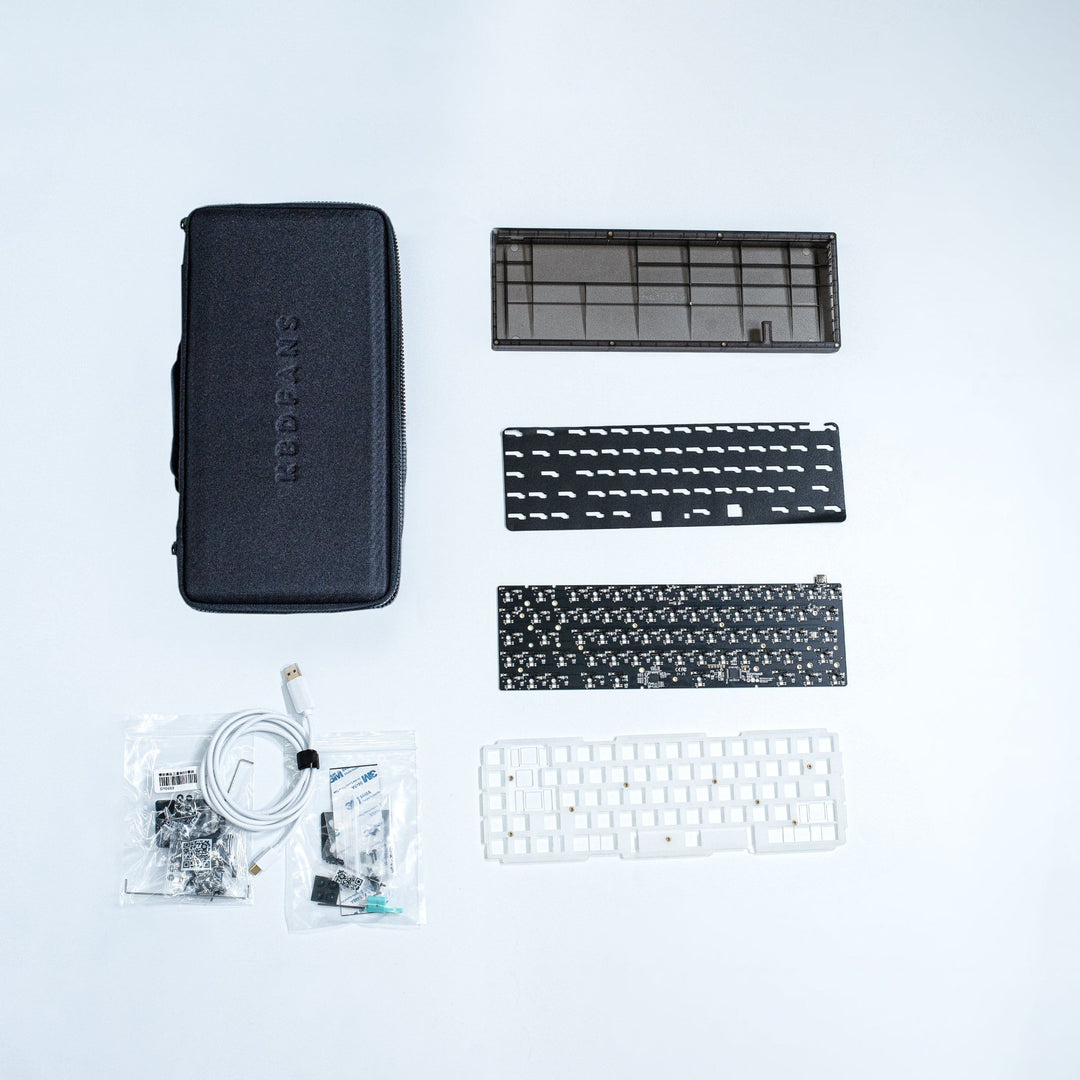

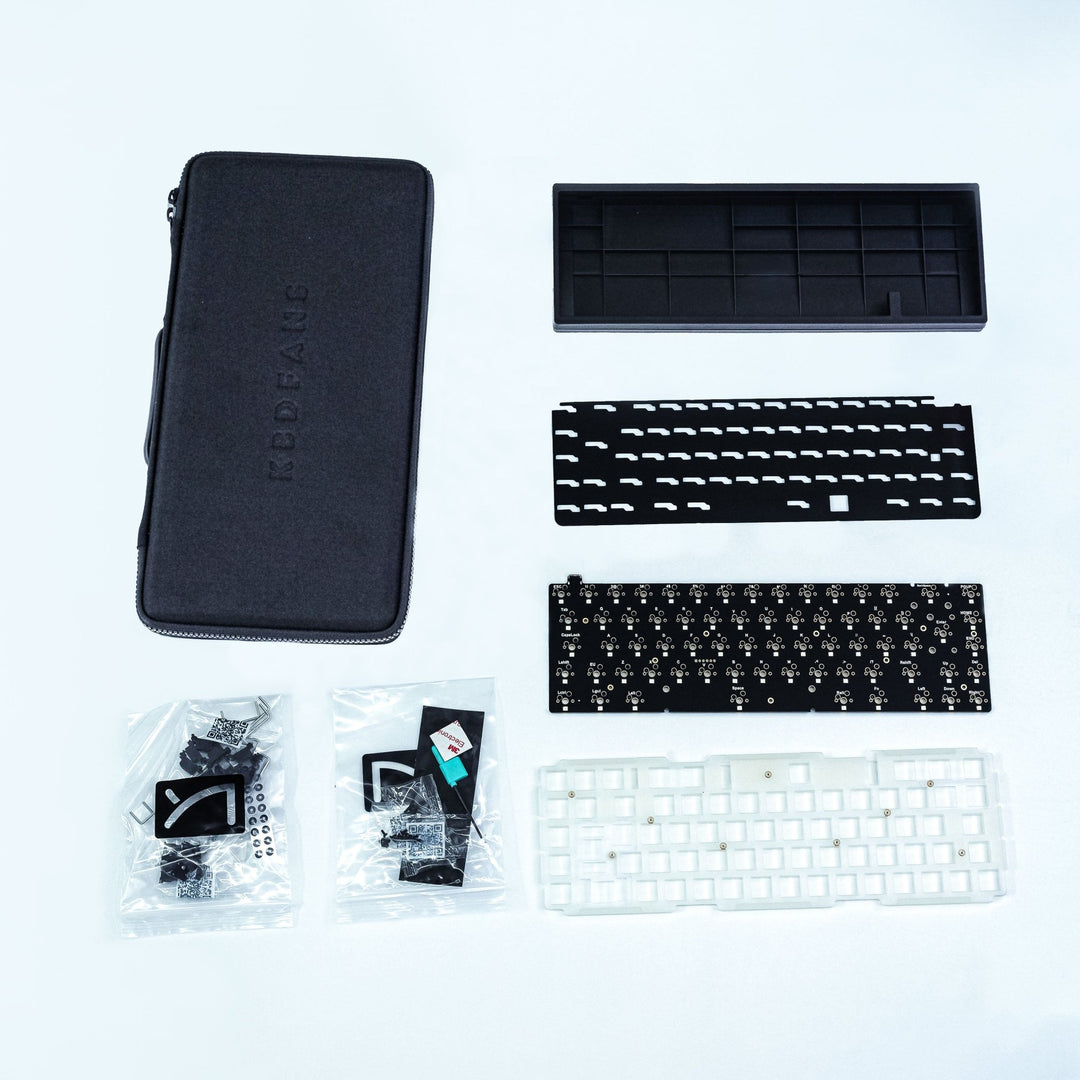

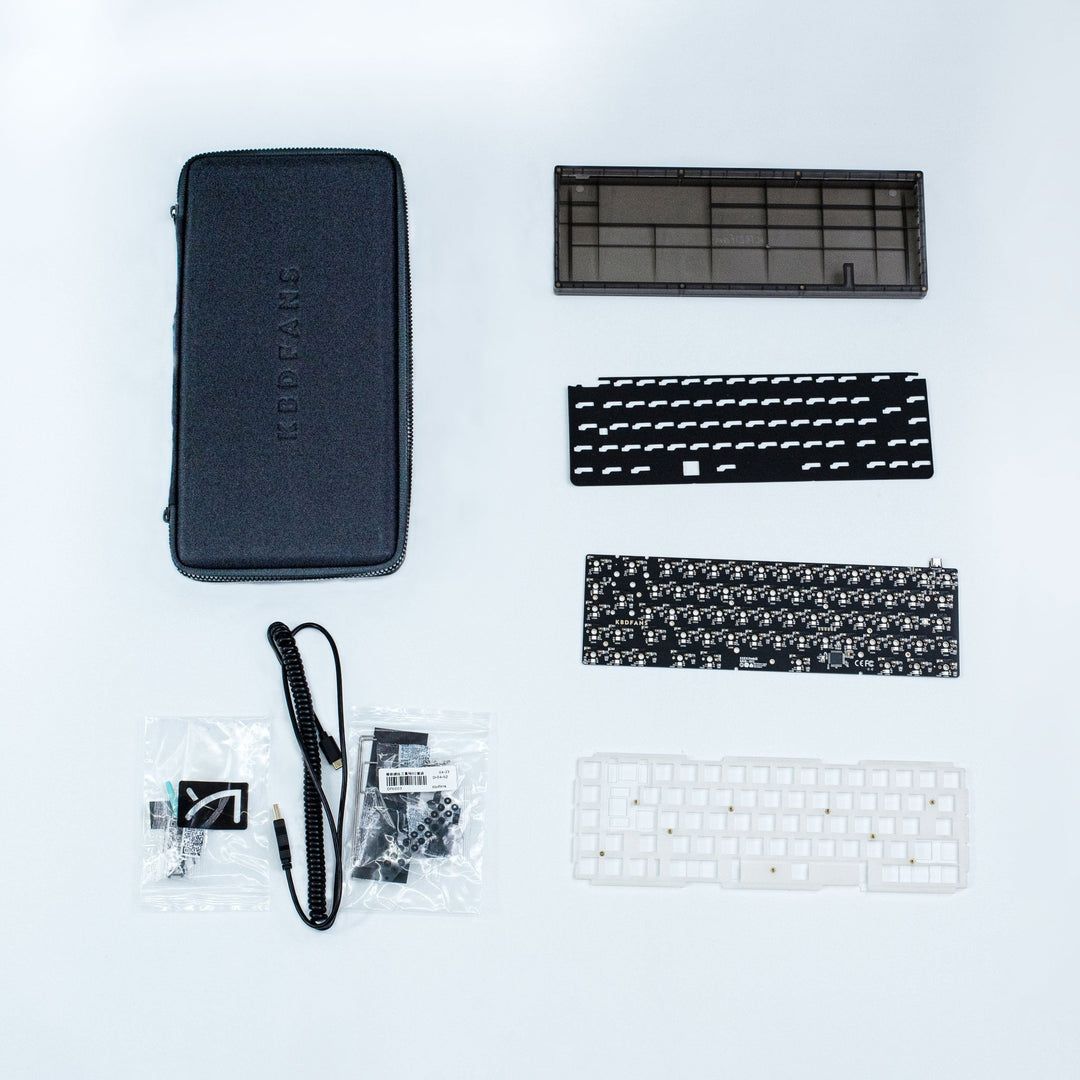

What's Included

  • PCB x1
  • Case x1
  • Plate x1
  • Stabilizers 60 set x1
  • Mute silicone x1
  • Bottom foam x1
  • USB-C cable x1
  • KBD67 Lite Carrying case x1
  • KBDfans stabilizers foam stickers set x1
  • Rubber feet and Screws

PCB Specifications

Wired PCB Specs:

  • KBD67 MarK II Hot-swap PCB/ KBD67 MarK II RGB-ISO PCB
  • Fixed layout
  • Support Per-key RGB
  • Based on QMK
  • Support VIA
  • Kailh hot-swap sockets
  • Wired PCB Flash Manual

Wireless PCB Specs:

  • Bluetooth 4.0 Dual-mode version
  • Fixed layout
  • No Per-key RGB, has an indicator on the caps lock key
  • Based on TMK
  • Can support VIA, update by ydkb.io
  • Gateron hot-swap sockets
  • KBD67 Lite Bluetooth Version Tutorial

Battery Specification:

  • Lithium polymer, 3.7V battery
  • The connector is PH2.0
